81216 RICH 80x115x28 81216-TV RICH
zoom_out_map
81216 RICH 80x115x28 81216-TV RICH

81216 RICH 80x115x28

Type: Axial Cylindrical Roller Bearing
Model: 81216-TN RICH
Dimensions: 80 x 115 x 28 mm
Brand: RICH
Origin: China
RICH
81216-TV
€32.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

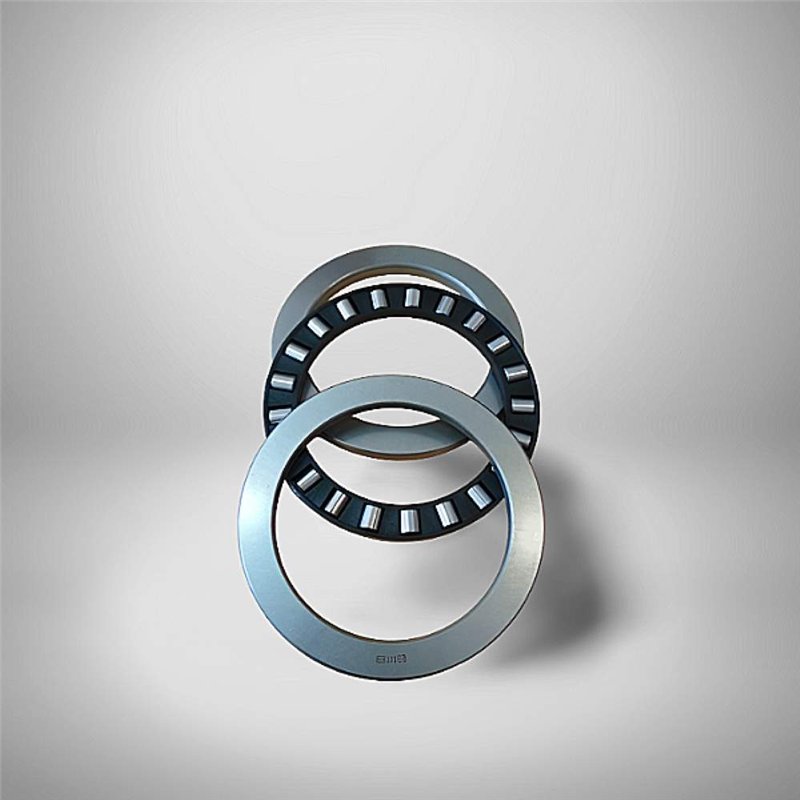

81216-TN RICH – Axial Cylindrical Roller Bearing – 80 x 115 x 28 mm

Technical Specifications:

  • Type: Axial cylindrical roller bearing
  • Brand: RICH
  • Model Designation: 81216-TV
  • Inner Diameter (d): 80 mm
  • Outer Diameter (D): 115 mm
  • Total Height (H): 28 mm
  • Cage Material: Polyamide (TV)
  • Weight: 0.939 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Thrust bearing assembly featuring a cylindrical roller and cage set, a shaft washer, and a housing washer for unidirectional support.
  • Cage Specification: Equipped with a glass-fiber reinforced polyamide cage (TV) for reduced weight, low noise, and optimized roller guidance.
  • Load Management: Engineered for high axial load capacity with high mechanical stiffness, suitable for applications with restricted axial space.
  • Mechanical Interface: 80 x 115 x 28 mm dimensional format manufactured to standardized industrial tolerances for consistent assembly performance.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
80
Outer Diameter
115
Width
28
Weight
0,9
Category
Axial Cylindrical Roller Bearing
