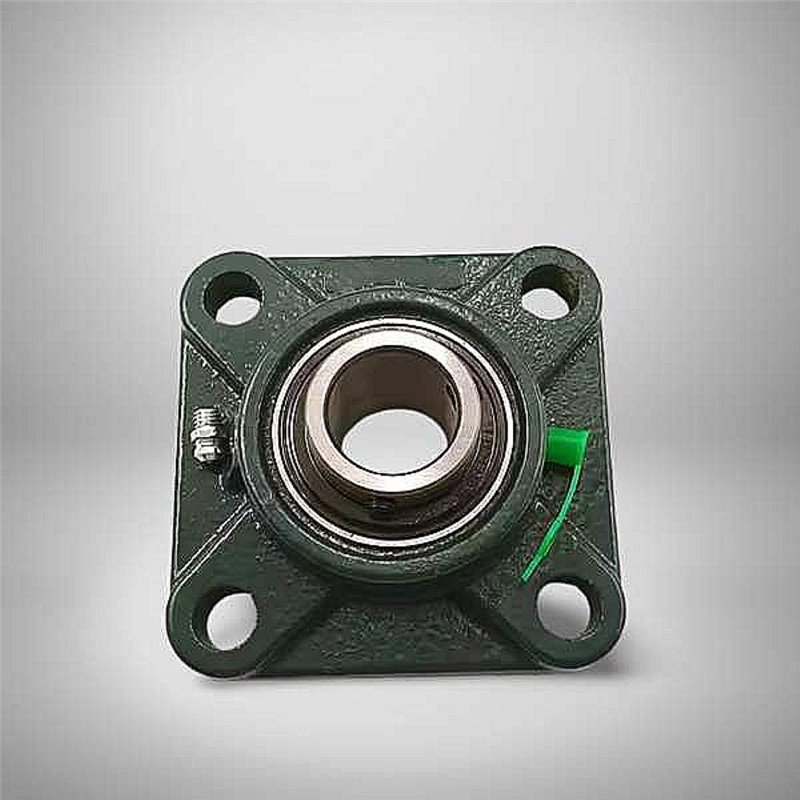

UCF218 RICH

UCF218 RICH – 90 mm Bore – Cast Iron Square Flanged Bearing Unit – Enhanced Durability & High Performance

Technical Specifications:

• Type: Cast Iron Square Flanged Bearing Unit
• Brand: RICH
• Model Designation: UCF218 RICH
• Bore Diameter (d): 90 mm
• Overall Length (L): 235 mm
• Mounting Hole Center Distance (J): 187 mm
• Overall Height (A): 68 mm
• Base to Center Height (A1): 25 mm
• Mounting Bolt Size (N): 23 mm
• Cage Material: Steel
• Internal Clearance: C3 (Greater than Normal)
• Sealing: Double-sided lip seal covered with steel sheet washers and outer flinger shield with corrosion protection.
• Weight: 10.33 kg
• Country of Origin: China

The UCF218 RICH cast iron square flanged bearing unit is a high-performance solution designed for heavy-duty industrial applications requiring exceptional strength and reliable shaft support. Manufactured by RICH, this unit integrates a robust deep groove ball bearing within a durable square cast iron housing, ensuring stable and secure mounting on various flat surfaces. With its substantial 90 mm bore diameter, it is perfectly suited for demanding environments where robust construction and consistent operation are paramount.

The solid cast iron housing provides superior resistance to shock loads and vibrations, contributing to the unit's longevity. This RICH bearing unit features a steel cage for enhanced durability and an internal clearance of C3 (greater than normal), which is ideal for applications involving high speeds or significant temperature variations, accommodating thermal expansion without compromising performance. Furthermore, the double-sided lip seal, protected by steel sheet washers and an outer flinger shield with corrosion protection, ensures excellent contaminant exclusion and lubricant retention, significantly extending the bearing's service life and reducing maintenance needs. The straightforward bolt-down installation characteristic of the square flange design makes the UCF218 RICH an efficient choice for optimizing the performance and reliability of your machinery.

Key Advantages:

• Robust Construction: Heavy-duty cast iron housing provides superior strength and durability.
• Enhanced Performance: C3 clearance suitable for high-speed or temperature-variant applications.
• Superior Sealing: Double-sided lip seal with steel protection ensures excellent contaminant resistance.
• Robust Components: Steel cage provides increased strength and reliability.
• Easy Installation: Square flange design allows for simple and secure mounting.
• A RICH product, symbolizing consistent quality and reliability, and made in China.
