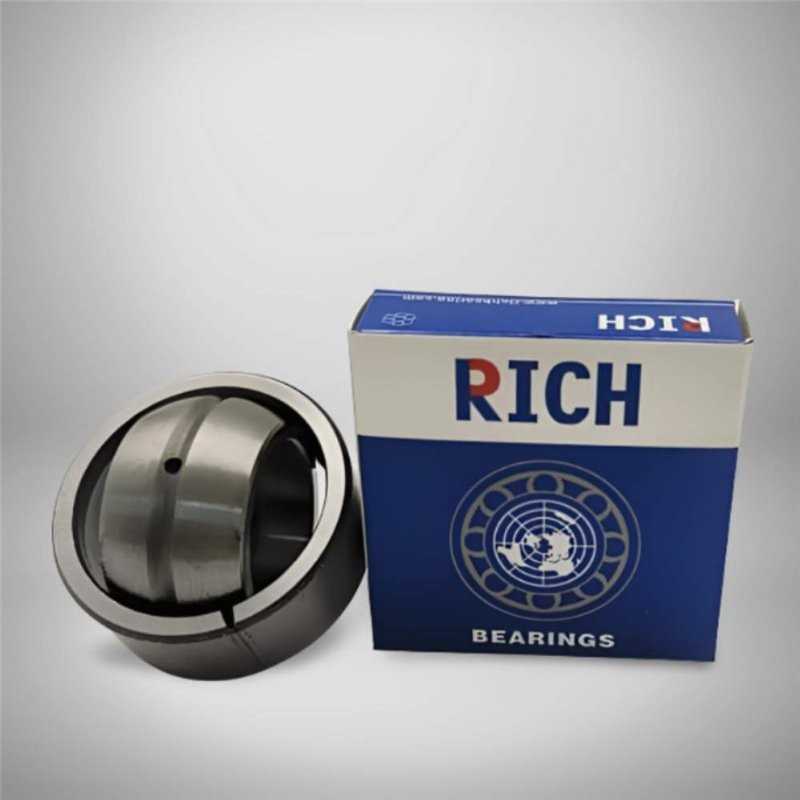

GE 10 ET RICH Spherical Plain Bearing - 10 x 19 x 9 mm

Technical Specifications:

  • Product Type: Spherical Plain Bearing
  • Model Designation: GE 10 ET
  • Brand: RICH
  • Bore Diameter (d): 10 mm
  • Outer Diameter (D): 19 mm
  • Width (B): 9 mm
  • Outer Ring Width (C): 6 mm
  • Friction Pair: Chrome Steel/PTFE
  • Weight: 0.013 kg
  • Country of Origin: China

The GE 10 ET RICH is a compact spherical plain bearing engineered to manage significant angular misalignment between the shaft and housing while supporting heavy static and dynamic radial loads. With dimensions of 10 mm bore, 19 mm outer diameter, and 9 mm width, this bearing is built for applications requiring a robust solution in restricted spaces. It features a high-performance Chrome Steel/PTFE friction pair, which ensures maintenance-free operation by providing self-lubrication throughout its service life. The durable PTFE composite liner allows for smooth, low-friction articulation. The GE 10 ET RICH is an ideal, self-lubricating component for linkage mechanisms, agricultural machinery, and hydraulic equipment.

Key Performance Advantages:

  • Maintenance-Free Operation: PTFE composite liner provides self-lubrication, eliminating the need for periodic re-lubrication.
  • Compact and High Capacity: Supports heavy loads despite its reduced size.
  • High Misalignment Capacity: Spherical geometry efficiently handles angular movement and compensates for shaft deflection.
  • RICH Quality: A reliable, high-capacity component for consistent performance in demanding conditions.

Data sheet

Inner Diameter
10
Outer Diameter
19
Width
9
Weight
0,013
