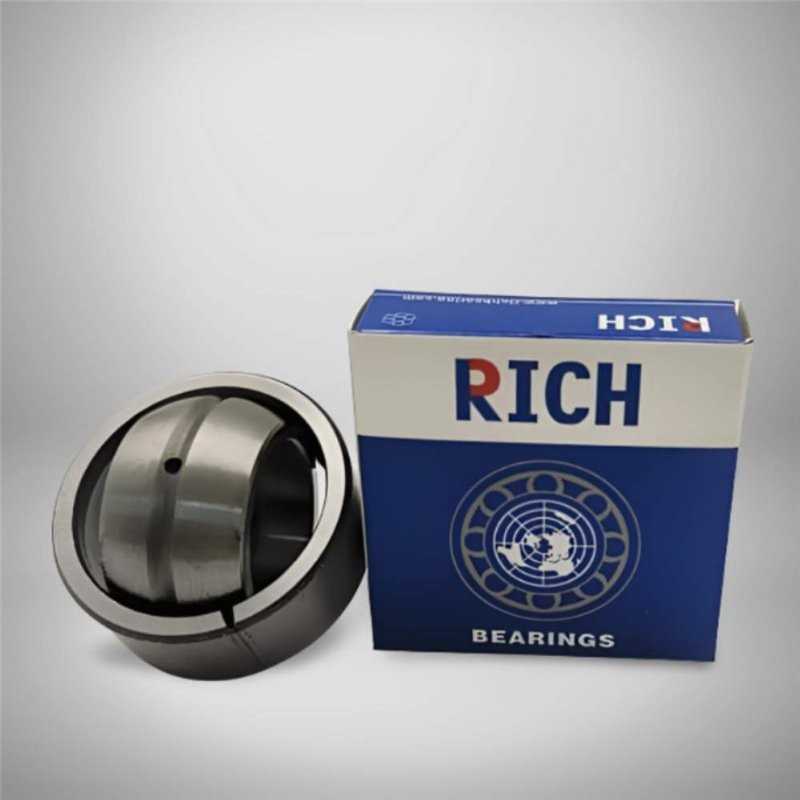

GE 12 ET RICH Spherical Plain Bearing - 12 x 22 x 10 mm

Technical Specifications:

  • Product Type: Spherical Plain Bearing
  • Model Designation: GE 12 ET
  • Brand: RICH
  • Bore Diameter (d): 12 mm
  • Outer Diameter (D): 22 mm
  • Width (B): 10 mm
  • Outer Ring Width (C): 7 mm
  • Friction Pair: Chrome Steel/PTFE
  • Weight: 0.016 kg
  • Country of Origin: China

The GE 12 ET RICH is a robust spherical plain bearing engineered to accommodate substantial angular misalignment between the shaft and housing while supporting heavy static and dynamic radial loads. With compact dimensions of 12 mm bore, 22 mm outer diameter, and 10 mm width, this bearing is built for applications requiring high capacity in limited space. It features a high-performance Chrome Steel/PTFE friction pair, ensuring it is maintenance-free by providing continuous self-lubrication throughout its service life. The durable PTFE composite liner allows for smooth, low-friction articulation. The GE 12 ET RICH is an ideal, self-lubricating component for linkage mechanisms, agricultural machinery, and hydraulic systems where reliability and longevity are key.

Key Performance Advantages:

  • Maintenance-Free Operation: PTFE composite liner provides self-lubrication, eliminating the need for periodic re-lubrication.
  • Compact and High Capacity: Supports heavy loads despite its small envelope dimensions.
  • High Misalignment Capacity: Spherical geometry efficiently handles angular movement and compensates for shaft deflection.
  • RICH Quality: A reliable, high-capacity component for consistent performance in demanding conditions.

Data sheet

Inner Diameter
12
Outer Diameter
22
Width
10
Weight
0,017
