GE 20 ET 2RS RICH 20x35x16
Rating:
(0)
EUR €
- EUR €
- USD $

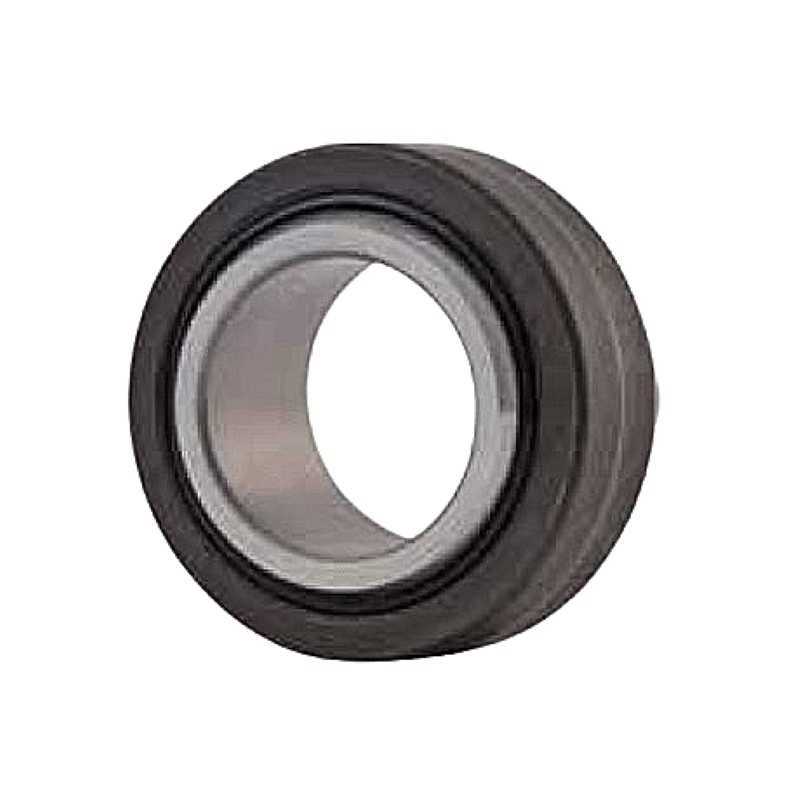

GE 20 ET 2RS RICH Spherical Plain Bearing - 20 x 35 x 16 mm
Technical Specifications:
- Product Type: Spherical Plain Bearing
- Model Designation: GE 20 ET 2RS
- Brand: RICH
- Bore Diameter (d): 20 mm
- Outer Diameter (D): 35 mm
- Width (B): 16 mm
- Outer Ring Width (C): 12 mm
- Friction Pair: Chrome Steel/PTFE
- Sealing: Double-sided Rubber, Contact (2RS)
- Weight: 0.061 kg
- Country of Origin: China
The GE 20 ET 2RS RICH is a heavy-duty spherical plain bearing engineered to accommodate significant angular misalignment between the shaft and housing while supporting high static and dynamic radial loads. This bearing features a self-lubricating Chrome Steel/PTFE friction pair, ensuring it is maintenance-free as the PTFE liner eliminates the need for periodic re-lubrication. The suffix 2RS indicates the presence of double-sided rubber contact seals, providing excellent protection against the ingress of dust, dirt, and moisture, thereby extending the bearing's service life in contaminated environments. With dimensions of 20 mm bore, 35 mm outer diameter, and 16 mm width, the GE 20 ET 2RS RICH is a dependable solution for linkage mechanisms, agricultural machinery, and hydraulic cylinders.
Key Performance Advantages:
- Maintenance-Free Operation: PTFE composite liner provides continuous self-lubrication.
- Fully Sealed (2RS): Double-sided contact seals maximize protection against contamination.
- High Misalignment Capacity: Spherical geometry efficiently handles angular movement and compensates for shaft deflection.
- RICH Quality: A durable, high-capacity component engineered for long service life.
Data sheet
Inner Diameter
20
Outer Diameter
35
Width
16
Weight
0,061
Sealing
Lip Seal On Both Sides
