WS 81105 RICH 25x42x3 WS81105 RICH
search
  • WS 81105 RICH 25x42x3 WS81105 RICH

WS 81105 RICH 25x42x3

RICH
WS81105
€1.48
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

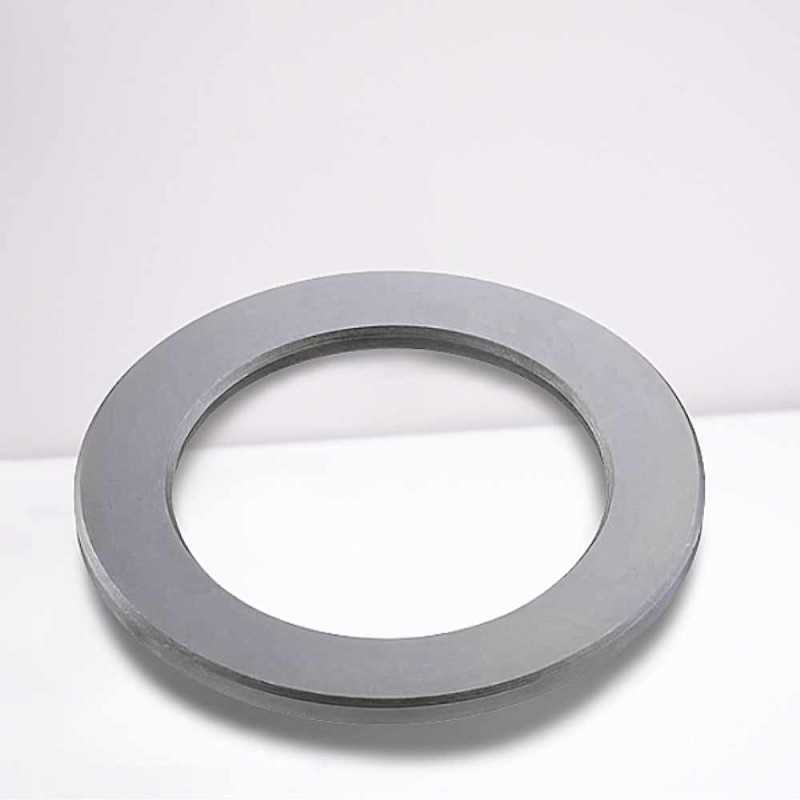

WS 81105 RICH Axial Bearing Washer - 25 x 42 x 3 mm

Technical Specifications:

  • Brand: RICH
  • Type: Axial Bearing Washer (Shaft Washer)
  • Model: WS 81105
  • Dimensions: 25 x 42 x 3 mm
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 42 mm
  • Thickness (B): 3 mm
  • Weight: 0.021 kg
  • Country of Origin: China

The WS 81105 RICH is a precision axial bearing washer designed to serve as the shaft raceway in an axial bearing arrangement, typically paired with a K-type axial needle roller and cage assembly. Manufactured by RICH, this washer features precise metric dimensions of 25 x 42 x 3 mm.

This component is manufactured from high-quality bearing steel, hardened and precision-ground to provide an optimal raceway surface for rolling elements. Its thin cross-section and robust design allow it to support very high axial loads while occupying minimal axial space. The WS 81105 RICH is an essential component for applications such as gearboxes, steering mechanisms, and compact power transmissions where high load capacity in the thrust direction is required and space conservation is critical.

Key Performance Advantages:

  • High Load Support: Provides a rigid and hardened raceway for high axial loads.
  • Space-Saving Design: Extremely thin profile minimizes axial space requirements.
  • Precision Ground: Ensures smooth, low-friction operation of the axial bearing assembly.
  • Versatile Use: Interchangeable component for standard axial needle roller assemblies.

Data sheet

Inner Diameter
25
Outer Diameter
42
Width
3
Weight
0,021
