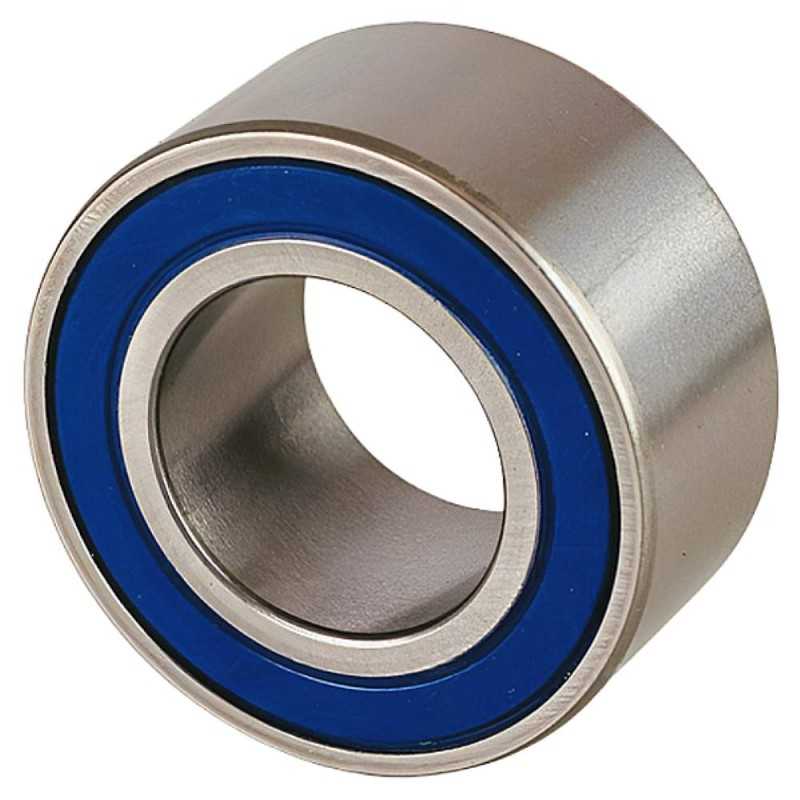

DAC 30550026 RICH 30x55x26 DAC30550026 RICH
zoom_out_map
DAC 30550026 RICH 30x55x26 DAC30550026 RICH

DAC 30550026 RICH 30x55x26

Type: Double Row Angular-Contact Ball Bearing
Model: DAC 30550026 RICH
Dimensions: 30 x 55 x 26 mm
Features: 2RS Contact Seals, C3 Clearance, High Rigidity
Brand: RICH
Origin: China
RICH
DAC30550026
€4.43
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

DAC 30550026 RICH – Double Row Angular-Contact Ball Bearing – 30 x 55 x 26 mm

Technical Specifications:

  • Type: Double row angular-contact ball bearing
  • Brand: RICH
  • Model Designation: DAC 30550026
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 55 mm
  • Width (B): 26 mm
  • Sealing: 2RS (Double-sided contact rubber seals)
  • Internal Clearance: C3 (Greater than normal)
  • Weight: 0.252 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Double-row angular contact design, specifically engineered for high rigidity and precise shaft guidance under combined loading conditions.
  • Thermal Management: Features C3 internal clearance to accommodate thermal expansion and potential shaft misalignment during high-speed operation.
  • Sealing System: Equipped with robust double-sided contact rubber seals (2RS) for maximum protection against dust, dirt, and moisture while ensuring optimal lubricant retention.
  • Mechanical Interface: 30 x 55 x 26 mm dimensional format manufactured to industrial precision standards for automotive and industrial hub applications.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30
Outer Diameter
55
Width
26
Weight
0,252
Category
Double Row Angular-Contact Ball Bearing
