UCPX12 RICH

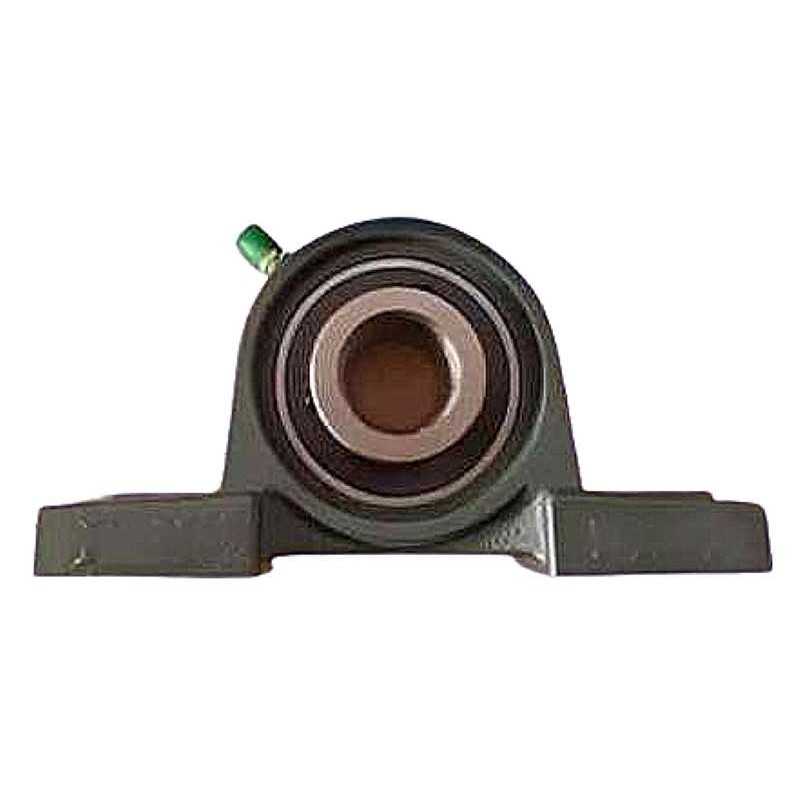

The UCPX12 RICH Cast Iron Bearing Unit is a **heavy-duty Pillow Block** type for a **60 mm shaft**. Robust **cast iron** housing provides exceptional stability and load support.

RICH
UCPX12
€26.18
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

UCPX12 RICH Cast Iron Bearing Unit - Pillow Block - 60 mm Shaft Diameter

Technical Specifications:

  • Brand: RICH
  • Type: Cast Iron Bearing Unit
  • Model: UCPX12
  • Shaft Diameter (d): 60 mm
  • Housing Length (L): 286 mm
  • Bolt Hole Spacing (J): 203 mm
  • Base Height (A): 83 mm
  • Bolt Hole Diameter (N): 25 mm
  • Weight: 7.236 kg
  • Country of Origin: China

Key Performance Advantages:

  • Heavy-Duty Construction: Robust **cast iron** pillow block housing provides high strength and stability for large industrial loads.
  • Secure Installation: UCP design allows for quick, reliable two-bolt mounting on support structures.
  • Shaft Compatibility: Designed to fit a **60 mm shaft**, offering a powerful solution for industrial power transmission.
  • Misalignment Compensation: The bearing insert can accommodate initial static shaft misalignment, simplifying installation processes.

Data sheet

Inner Diameter
60
Weight
7,236
