  • RMS 10 RICH 31,75x79,375x22,225 RMS10 RICH

RMS 10 RICH 31,75x79,375x22,225

RICH
RMS10
€12.47
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

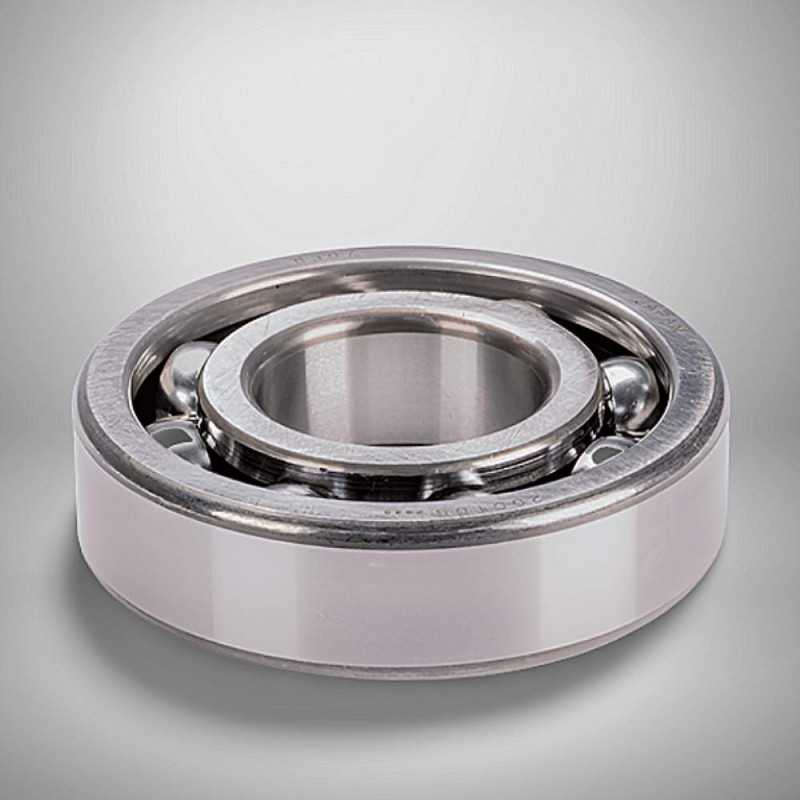

RMS10 RICH Single Row Deep Groove Ball Bearing - 31.75 x 79.375 x 22.225 mm, Open Type, Normal Clearance

The RMS10 RICH is an open-type single row deep groove ball bearing designed for applications requiring smooth and efficient rotation. It has key dimensions of 31.75 mm inner diameter, 79.375 mm outer diameter, and a width of 22.225 mm. This bearing weighs approximately 0.553 kg. It features a steel cage and has CN (normal) clearance. It is made in China and does not have any seals, making it suitable for applications where external lubrication or no sealing is required. Single row deep groove ball bearings can accommodate radial and axial loads in both directions.

Key Specifications:

  • Type:** Single Row Deep Groove Ball Bearing
  • Model:** RMS10 RICH
  • Inner Diameter (d): 31.75 mm (1.25 inches)
  • Outer Diameter (D): 79.375 mm (3.125 inches)
  • Width (B): 22.225 mm (0.875 inches)
  • Cage Material:** Steel
  • Clearance:** CN (Normal)
  • Sealing:** None (Open)
  • Weight:** 0.553 kg
  • Country of Origin:** China

Key Features:

  • Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
  • Steel Cage:** Offers high strength and durability.
  • Open Type (No Seals): Allows for relubrication and high-speed operation.
  • Normal Clearance (CN): Standard radial internal clearance.
  • Imperial Dimensions:** Common in certain applications and industries.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
31,75
Outer Diameter
79.375
Width
22.225
Weight
0,5
Ball Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
