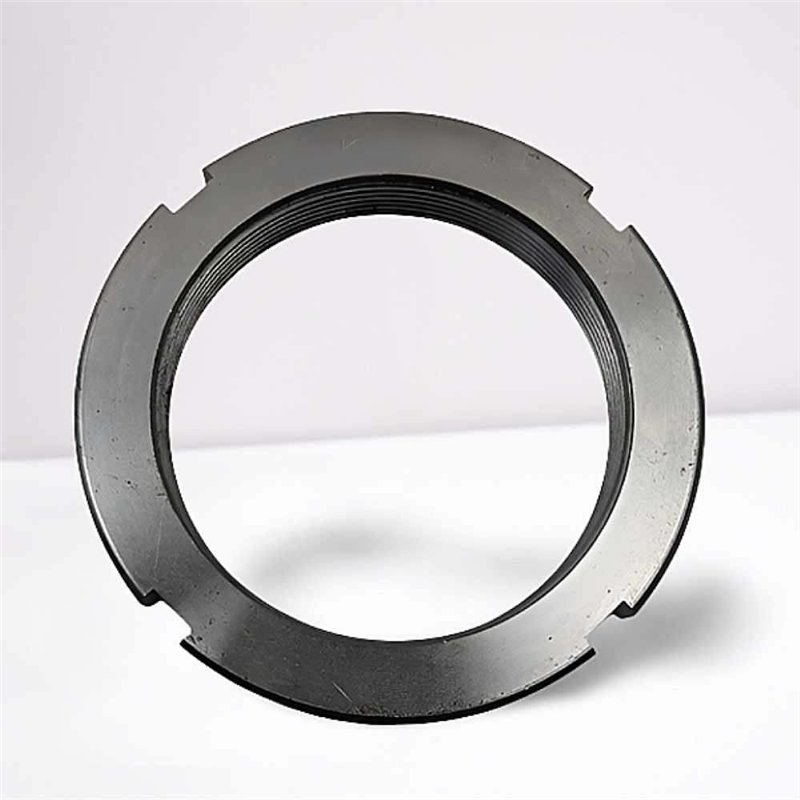

KM 38 RICH Locknut - 190 x 240 x 28 mm

Technical Specifications:

  • Product Type: Locknut
  • Model Designation: KM 38
  • Brand: RICH
  • Thread Size: M190x3
  • Bore Diameter (d): 190 mm
  • Outer Diameter (D): 240 mm
  • Width (B): 28 mm
  • Weight: 3.418 kg
  • Country of Origin: China

The KM 38 RICH is a standard locknut designed to be used with corresponding lock washers (not included) to reliably secure rolling bearings, sleeves, and other components onto a shaft. This heavy-duty component features an M190x3 thread and provides essential axial support to maintain the correct positioning of assemblies. With precise dimensions of 190 mm bore, 240 mm outer diameter, and 28 mm width, the KM 38 RICH offers a dependable solution for mounting and setting the clearance or preload of very large bearing arrangements in heavy industrial machinery.

Key Performance Advantages:

  • Secure Axial Positioning: Effectively locks components against axial movement on the shaft.
  • Standard Thread: Features an M190x3 thread for common heavy-duty industrial applications.
  • Robust Dimensions: Reliable size (190 x 240 x 28 mm) ensures proper fitment for large shafts.
  • RICH Quality: A reliable retaining nut for ensuring assembly integrity and performance in demanding environments.

Data sheet

Inner Diameter
190
Outer Diameter
240
Width
28
Weight
3,41
Category
Locknut
