NX 7 Z TN RICH 7x14x18 NX7ZTN RICH
zoom_out_map
NX 7 Z TN RICH 7x14x18 NX7ZTN RICH

NX 7 Z TN RICH 7x14x18

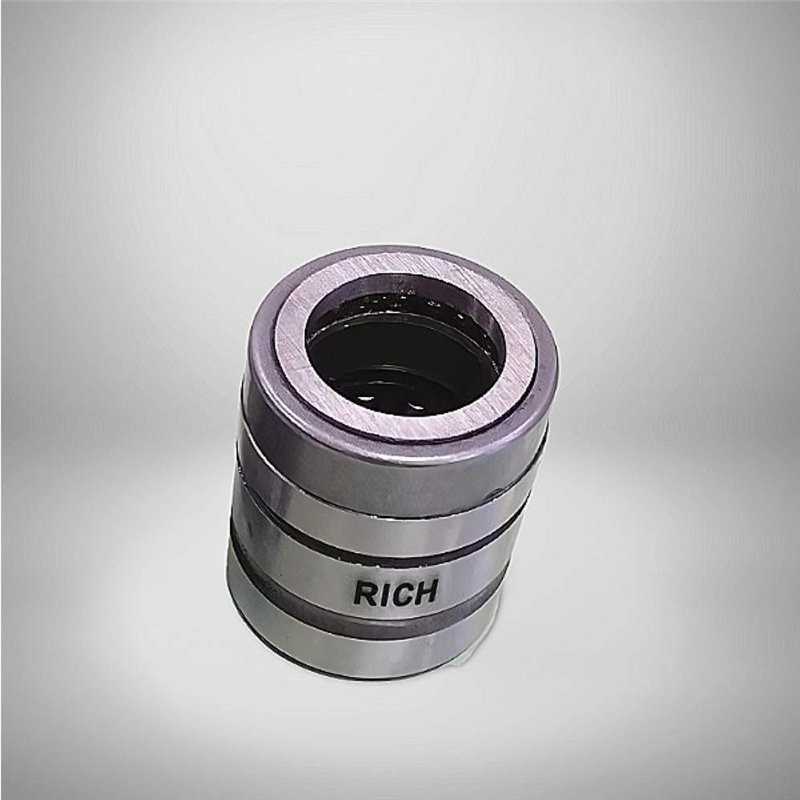

NX 7 Z TN RICH Combined Bearing – dimensions 7 x 14 x 18 mm, weight 0.012 kg. Polyamide cage, Z end cap, compact design.

RICH
NX7ZTN
€9.42
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

NX 7 Z TN RICH | Combined Bearing – 7 x 14 x 18 mm

Technical Specifications:

  • Catalog Code: NX 7 Z TN RICH
  • Brand: RICH
  • Type: Combined Bearing
  • Bore Diameter (d): 7 mm
  • Outer Diameter (D): 14 mm
  • Total Width (T): 18 mm
  • Weight: 0.012 kg
  • Cage: Polyamide (TN)
  • Feature: With end cap (Z-type)
  • Country of Origin: China

Key Performance Advantages:

  • Compact Design: Small dimensions (7 x 14 x 18 mm) ideal for miniature assemblies.
  • Combined Function: Supports both radial and axial loads in one bearing unit.
  • Polyamide Cage (TN): Lightweight, low friction, and quiet running.
  • Z End Cap: Provides closure on one side, retaining grease and protecting against contamination.
  • RICH Quality: Precision manufacturing ensures reliability and long service life.

Transparency Note: This combined bearing is manufactured directly under the RICH brand. The catalog code NX 7 Z TN is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand.

Data sheet

Inner Diameter
7
Outer Diameter
14
Width
18
Weight
0,01
Cage
Polyamide Cage
Category
Combined Bearing
