KMT 9 RICH 45x70x22 KMT9 RICH
search
  • KMT 9 RICH 45x70x22 KMT9 RICH

KMT 9 RICH 45x70x22

RICH
KMT9
€15.14
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

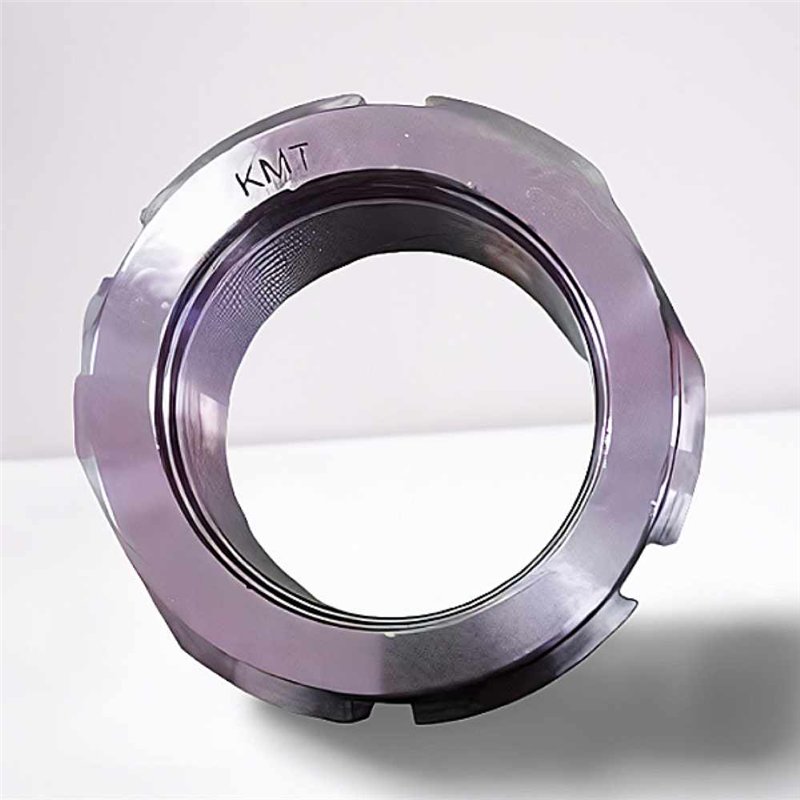

KMT 9 RICH Precision Locknut - 45 x 70 x 22 mm

Technical Specifications:

  • Product Type: Precision Locknut
  • Model Designation: KMT 9
  • Brand: RICH
  • Thread Size: M45x1.5
  • Bore Diameter (d): 45 mm
  • Outer Diameter (D): 70 mm
  • Width (B): 22 mm
  • Weight: 0.328 kg
  • Country of Origin: China

The KMT 9 RICH is a high-accuracy precision locknut designed for applications requiring high rigidity and precise axial location of components, such as high-speed spindles and precision machinery. The design incorporates an internal locking mechanism to ensure reliable fixation and prevent loosening under dynamic loads and vibration. Featuring a fine M45x1.5 thread and robust dimensions of 45 mm bore, 70 mm outer diameter, and 22 mm width, the KMT 9 RICH is engineered by RICH to maintain bearing preload or clearance with exceptional stability and accuracy in demanding environments.

Key Performance Advantages:

  • Precision Thread: Features an M45x1.5 thread for accurate adjustments and secure mounting.
  • High Axial Rigidity: Provides stable and secure clamping force essential for precision applications.
  • Robust Design: Dimensions (45 x 70 x 22 mm) suitable for medium-sized high-precision assemblies.
  • RICH Quality: A reliable component for critical applications requiring highly stable bearing settings.

Data sheet

Inner Diameter
45
Outer Diameter
70
Width
22
Weight
0,328
Category
Precision Locknut
