HN 1816 RICH 18x24x16 HN1816 RICH
search
  • HN 1816 RICH 18x24x16 HN1816 RICH

HN 1816 RICH 18x24x16

RICH
HN1816
€5.36
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

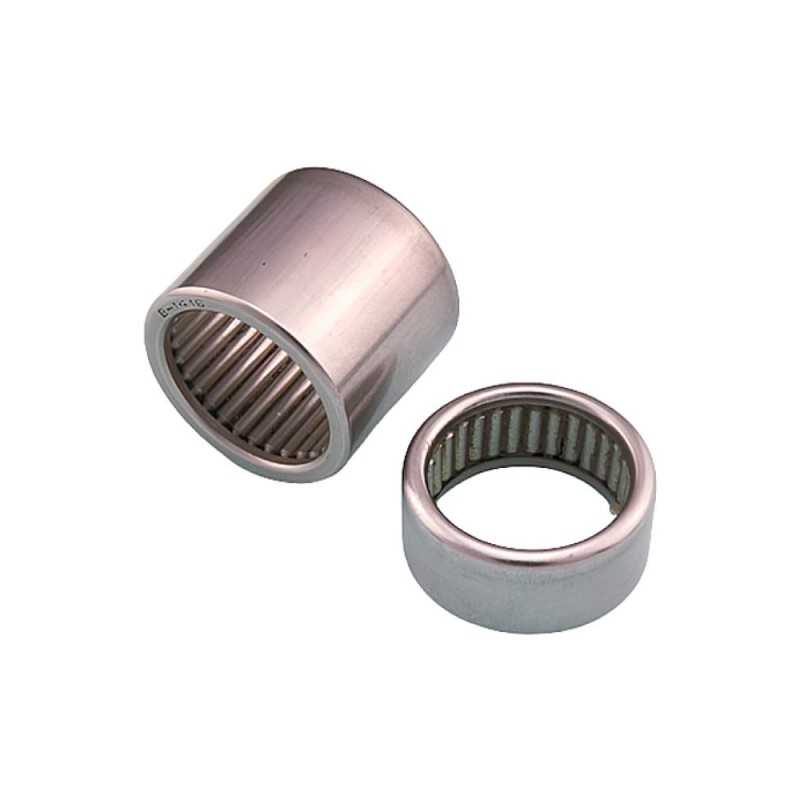

Needle Roller Bearing Without Inner Ring HN 1816 RICH - 18 x 24 x 16 mm

The HN 1816 RICH is a needle roller bearing designed without an inner ring. This makes it ideal for applications where the shaft can be hardened and precision-ground to serve as the inner raceway. This design offers a highly compact radial cross-section, making it perfectly suited for assemblies with limited space. This particular bearing is designed without a cage, meaning it is a full complement design, allowing for the maximum number of needle rollers to be installed. This provides an even higher load carrying capacity in a smaller space compared to caged designs. It is particularly effective in oscillating movements and situations where substantial radial loads need to be managed within a small envelope. Its dimensions are an 18 mm bore diameter, 24 mm outer diameter, and 16 mm width, with a weight of 0.019 kg. This product is manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller Bearing Without Inner Ring (Full Complement)
  • Dimensions: 18 mm bore diameter x 24 mm outer diameter x 16 mm width
  • Weight: 0.019 kg
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Extremely compact radial cross-section
  • Very high load carrying capacity (due to full complement design)
  • High stiffness
  • Suitable for applications where shaft can serve as raceway
  • Economical solution for space-constrained designs

Data sheet

Inner Diameter
18
Outer Diameter
24
Width
16
Weight
0,019
Category
Needle Roller Bearing
