SA212G RICH 60x110x53,1

RICH
SA212G
€13.62
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

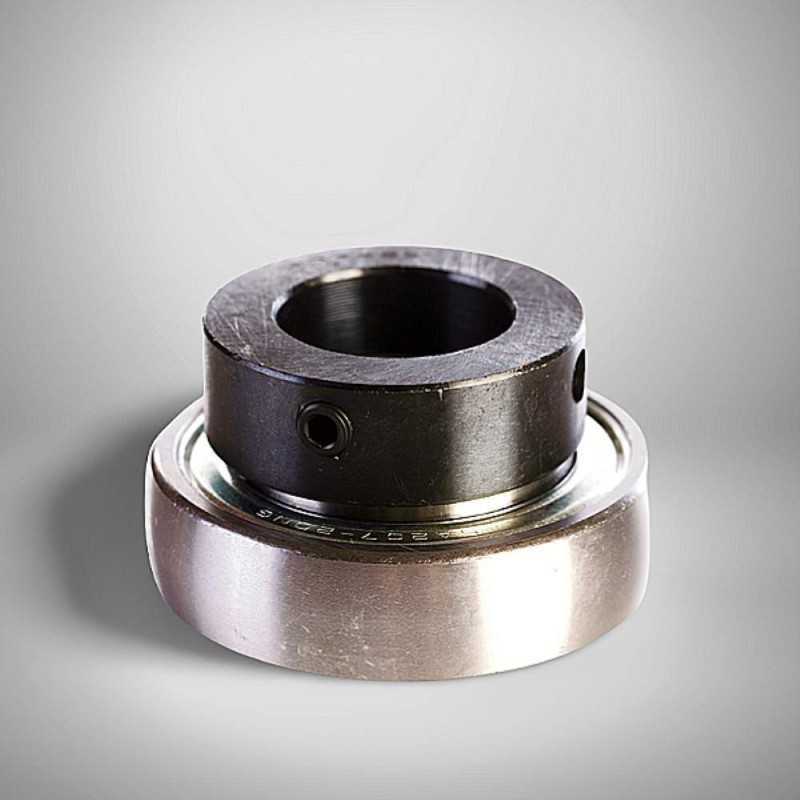

SA212G RICH Insert Ball Bearing - 60 x 110 x 53.1 mm

Technical Specifications:

  • Brand: RICH
  • Type: Insert Ball Bearing
  • Dimensions: 60 x 110 x 53.1 mm
  • Inner Ring Width: 37.2 mm
  • Outer Ring Width (C): 22 mm
  • Weight: 1.345 kg
  • Sealing: Double-sided lip seal covered with a plate
  • Outer Ring Profile: Spherical with a groove
  • Clearance: CN - Normal Clearance
  • Country of Origin: China

The SA212G RICH is a robust insert ball bearing engineered for use in demanding industrial and agricultural applications. It is designed with a spherical (rounded) outer ring that allows it to compensate for initial static misalignment between the shaft and the housing, which is a common challenge in machinery. This bearing features a highly effective double-sided lip seal covered by a metal plate, providing superior protection against heavy contamination and moisture. This advanced sealing system ensures that the internal lubricant is retained and contaminants are kept out, significantly extending the bearing's service life.

Key Performance Advantages:

  • Superior Contamination Protection: Robust double-sided seals with a metal plate effectively block dirt and moisture.
  • Misalignment Compensation: The spherical outer ring profile accommodates initial static misalignment, reducing stress on the bearing and shaft.
  • Durability: Built to withstand demanding conditions, providing reliable and long-lasting performance.
  • Simplified Mounting: The outer ring groove simplifies its mounting and axial positioning.

Data sheet

Inner Diameter
60
Outer Diameter
110
Width
53,1
Weight
1,345
Clearance
CN (Normal)
