RMS 8 2RS RICH 25,4x63,5x19,05
Rating:
(0)
EUR €
- EUR €
- USD $

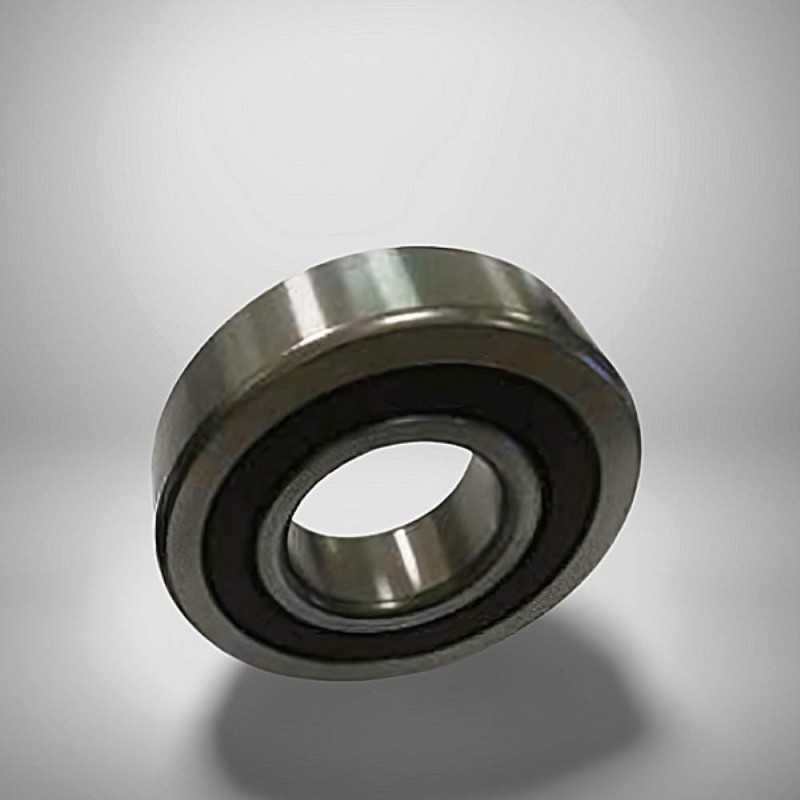

RMS8-2RS RICH Single Row Deep Groove Ball Bearing - 25.4 x 63.5 x 19.05 mm, Double Sealed, Normal Clearance
The RMS8-2RS RICH is a single row deep groove ball bearing designed for applications requiring smooth and efficient rotation with enhanced sealing. It has key dimensions of 25.4 mm inner diameter, 63.5 mm outer diameter, and a width of 19.05 mm. This bearing weighs approximately 0.277 kg. It features a steel cage and double-sided rubber contact seals (2RS) for excellent protection against dust and contaminants. The bearing has CN (normal) clearance. It is made in China. Single row deep groove ball bearings can accommodate radial and axial loads in both directions.
Key Specifications:
- Type:** Single Row Deep Groove Ball Bearing
- Model:** RMS8-2RS RICH
- Inner Diameter (d): 25.4 mm (1 inch)
- Outer Diameter (D): 63.5 mm (2.5 inches)
- Width (B): 19.05 mm (0.75 inches)
- Cage Material:** Steel
- Clearance:** CN (Normal)
- Sealing:** Double-sided rubber contact seals (2RS)
- Weight:** 0.277 kg
- Country of Origin:** China
Key Features:
- Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
- Double Rubber Contact Seals (2RS): Provides excellent protection against dust and contaminants, extending bearing life.
- Steel Cage:** Offers high strength and durability.
- Normal Clearance (CN): Standard radial internal clearance.
- Imperial Dimensions:** Common in certain applications and industries.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
25,04
Outer Diameter
63,05
Width
19,05
Weight
0,258
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
