  • F6800 2RS RICH 10x19x5 F6800.2RS RICH

F6800 2RS RICH 10x19x5

RICH
F6800.2RS
€0.91
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

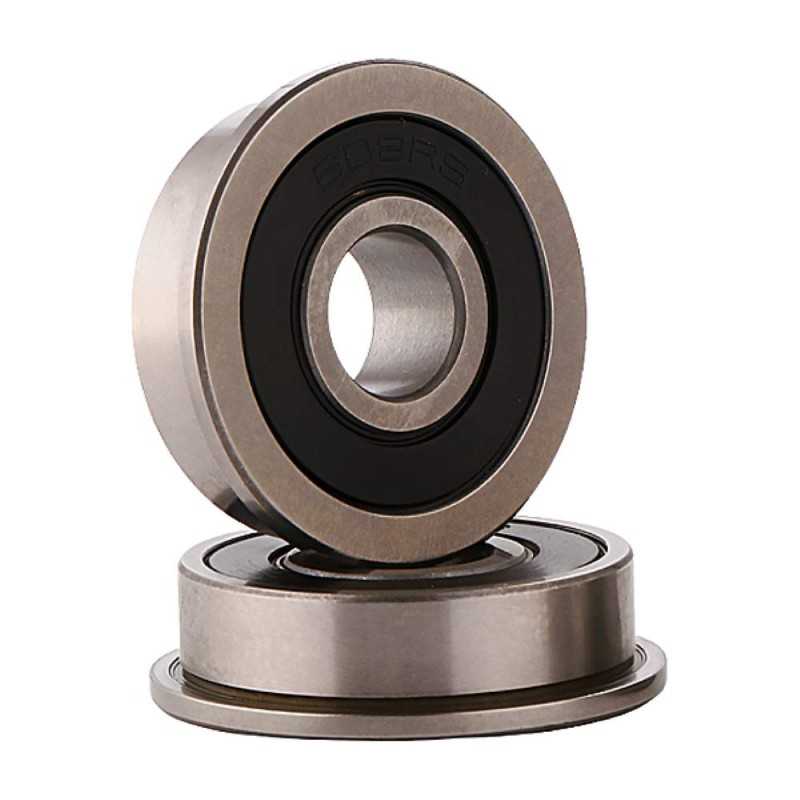

F6800 2RS RICH Flanged Deep Groove Ball Bearing - 10 x 19 x 5 mm, Double Sealed

The F6800 2RS RICH, also known as F61800 2RS, is a flanged single row deep groove ball bearing designed for applications requiring precise positioning and smooth operation. It has key dimensions of 10 mm inner diameter, 19 mm outer diameter, and a width of 5 mm. The flange diameter (D1) is 21 mm, which aids in axial location. The rolling elements have a diameter (Dw) of 2.381 mm. This bearing features a steel cage that is guided by the rolling elements and weighs approximately 0.006 kg. It has CN (normal) radial internal clearance. It is made in China. The "2RS" suffix indicates that the bearing has double-sided rubber contact seals for excellent protection against dust and contaminants. Flanged deep groove ball bearings can accommodate radial and axial loads and are often used in applications where axial positioning is critical.

Key Specifications:

  • Type:** Flanged Single Row Deep Groove Ball Bearing
  • Model:** F6800 2RS RICH (also known as F61800 2RS)
  • Inner Diameter (d): 10 mm
  • Outer Diameter (D): 19 mm
  • Width (B): 5 mm
  • Flange Diameter (D1): 21 mm
  • Rolling Element Diameter (Dw): 2.381 mm
  • Cage Material:** Steel, guided by rolling elements
  • Radial Internal Clearance:** CN (Normal)
  • Sealing:** Double-sided rubber contact seals (2RS)
  • Weight:** 0.006 kg
  • Country of Origin:** China

Key Features:

  • Flanged Outer Ring:** Facilitates axial positioning and simplifies mounting.
  • Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
  • Steel Cage:** Provides high strength and durability, ensuring proper ball guidance.
  • CN Clearance:** Standard radial internal clearance for general applications.
  • Double Rubber Seals (2RS): Offers excellent protection against dust and contaminants.
  • Compact and Lightweight:** Ideal for applications with space and weight limitations.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
10
Outer Diameter
19
Width
5
Weight
0,006
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Clearance
CN (Normal)
Category
Flanged Deep Groove Ball Bearing
