CSK 8 RICH 8x22x9
Rating:
(0)
EUR €
- EUR €
- USD $

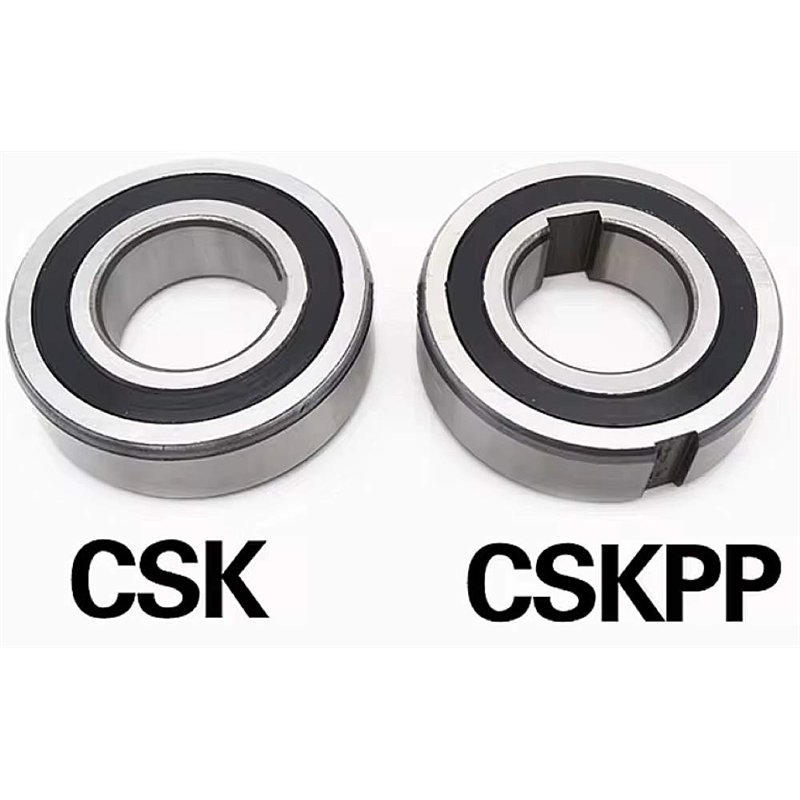

CSK8 RICH | Versatile Ball Bearing Freewheel Clutch 8 x 22 x 9 mm
Technical Specifications:
- Product Type: Ball Bearing Freewheel Clutch (One-Way Bearing)
- Model: CSK8 RICH
- Brand: RICH
- Dimensions: 8 mm ID x 22 mm OD x 9 mm W
- Weight: 0.019 kg
- Country of Origin: China
The CSK8 RICH is a versatile ball bearing freewheel clutch engineered for high-precision unidirectional motion in ultra-compact environments. With dimensions of 8 x 22 x 9 mm, this one-way bearing integrates a sprag-type clutch into a standard 62-series ball bearing footprint. It ensures instant torque transmission in one direction while providing smooth, low-friction freewheeling in the reverse.
Designed for space-constrained industrial drives and precision robotics, the 0.019 kg CSK8 RICH functions as both a radial support bearing and a backstop mechanism. Its robust internal construction prevents reverse rotation, enhancing operational safety in automated systems. The factory-lubricated design ensures long-term reliability and maintenance-free performance in high-speed applications.
Key Advantages:
- Compact Integration: Combines bearing support and clutch function within minimal spatial constraints.
- Sprag Mechanism Precision: Delivers immediate engagement for accurate backstop control.
- Low Operational Inertia: Lightweight 0.019 kg build minimizes energy consumption in fast-cycling machinery.
- Durable Construction: Built with high-grade steel to resist wear during continuous freewheeling cycles.
Transparency Note: Manufactured under the RICH brand. All dimensions and technical data are provided for identification and compatibility purposes.
Data sheet
Inner Diameter
8
Outer Diameter
22
Width
9
Weight
0,019
Category
Ball Bearing Freewheel Clutch
