HFL3530 RICH 35x42x30

RICH
HFL3530
€3.95
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

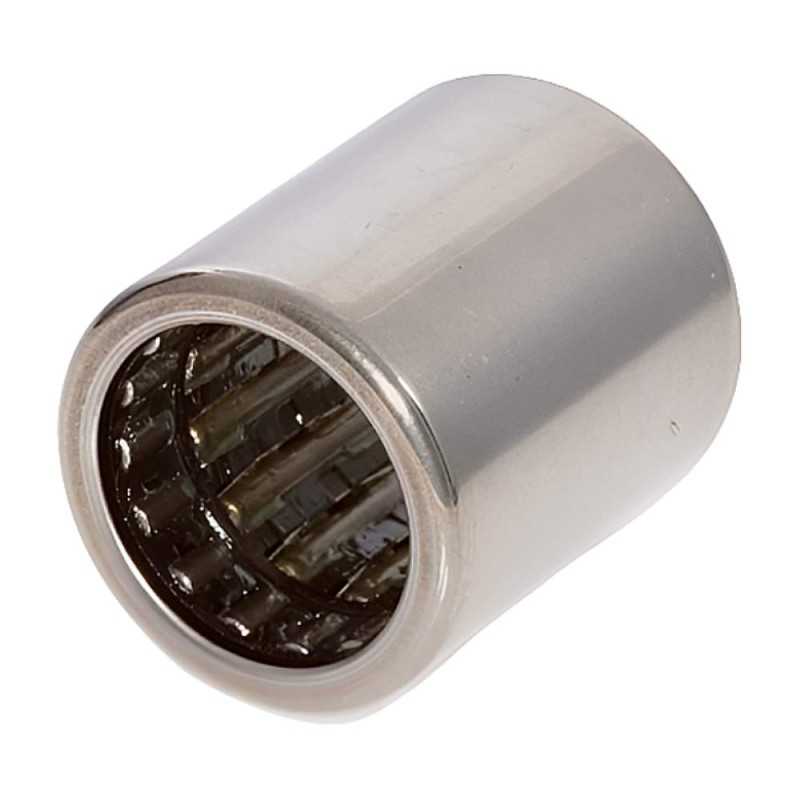

Drawn Cup Roller Clutch with Bearing HFL 3530 RICH - 35 x 42 x 30 mm

The HFL 3530 RICH is a drawn cup roller clutch integrated with a bearing, designed for applications requiring one-way rotation, backstopping, or indexing capabilities. This compact unit features precisely formed sprags or rollers that allow free rotation in one direction and immediately lock in the opposite direction, providing a reliable clutching action. The integrated needle roller bearing assembly supports significant radial loads, making it a complete and robust solution for various power transmission needs. Its drawn cup outer ring provides a space-saving design and allows for simple, economical installation by pressing it into a housing bore. The dimensions of this unit are 35 mm inner diameter, 42 mm outer diameter, and 30 mm width, with an approximate weight of 0.057 kg. Manufactured in China by RICH.

Key Specifications:

  • Type: Drawn Cup Roller Clutch with Bearing
  • Dimensions: 35 mm inner diameter x 42 mm outer diameter x 30 mm width
  • Weight: 0.057 kg
  • Functionality: One-way rotation, backstopping, indexing
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Compact, Space-Saving Design
  • Integrated Needle Roller Bearing for high radial load support
  • Reliable One-Way Clutch action
  • Simple Press-Fit Installation
  • Durable Construction

Data sheet

Inner Diameter
35
Outer Diameter
42
Width
30
Weight
0,065
Category
Drawn Cup Roller Clutch
