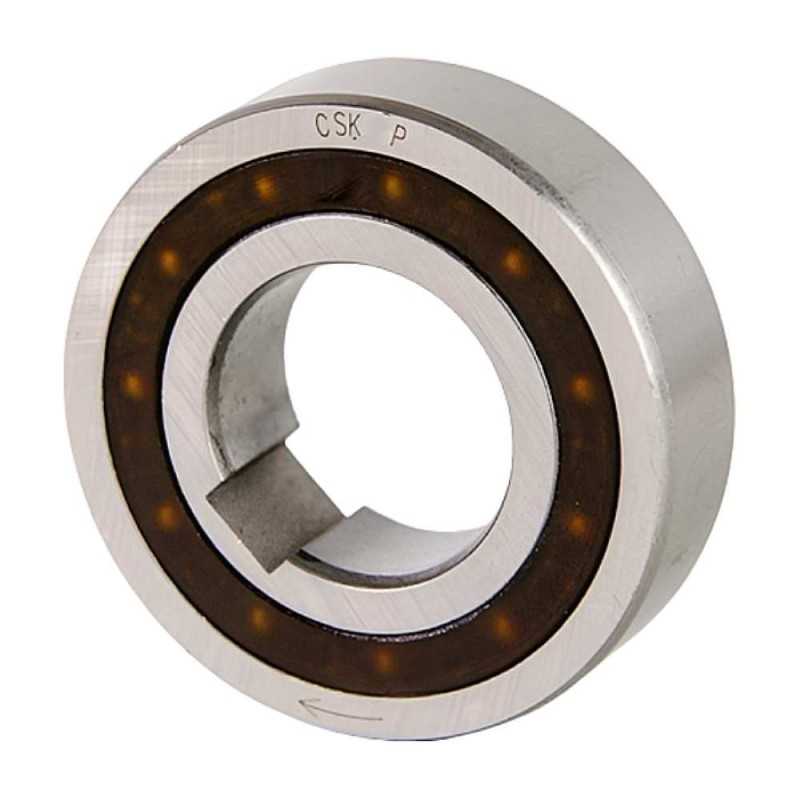

CSK 15 P RICH | Ball Bearing Freewheel Clutch 15 x 35 x 11 mm

Technical Specifications:

  • Product Type: Ball Bearing Freewheel Clutch (One-Way)
  • Model: CSK 15 P RICH
  • Brand: RICH
  • Dimensions: 15 mm ID x 35 mm OD x 11 mm Width
  • Keyway Feature: P (Inner Race Keyway)
  • Weight: 0.049 kg
  • Country of Origin: China

The CSK 15 P RICH is a one-way bearing combining a deep groove ball bearing structure with an integrated sprag clutch. The P variant includes a machined keyway on the inner race for direct torque transmission on keyed shafts. The unit supports radial loads and provides unidirectional locking for backstop and overrunning applications.

Key Characteristics:

  • Inner Race Keyway (P): Suitable for keyed shaft mounting.
  • Integrated Sprag Clutch: Provides unidirectional locking.
  • Overrunning Capability: Designed for high-speed freewheeling.
  • Compact Width: 11 mm overall bearing thickness.

Note: Manufactured under the RICH brand. Dimensions and data provided for identification and compatibility.

Data sheet

Inner Diameter
15
Outer Diameter
35
Width
11
Weight
0,049
Category
Ball Bearing Freewheel Clutch
