SUCP204-12 RICH
Rating:
(0)
EUR €
- EUR €
- USD $

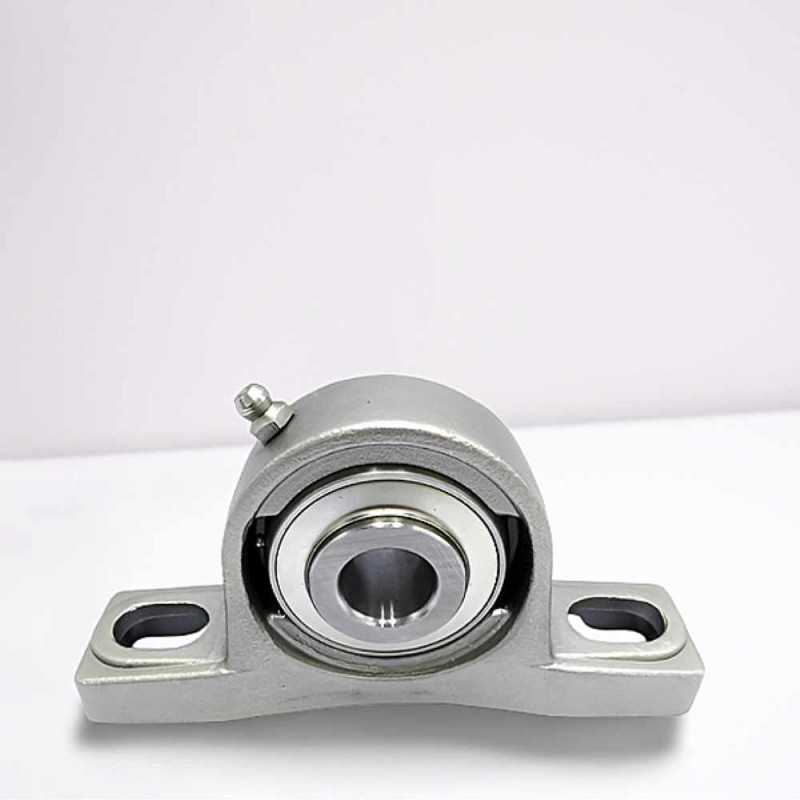

SUCP204-12 RICH Stainless Steel Pillow Block Bearing Unit - 19.05 mm Bore
Technical Specifications:
- Brand: RICH
- Type: Stainless Steel Pillow Block Bearing Unit
- Model: SUCP204-12
- Inner Diameter (d): 19.05 mm
- Material: Stainless Steel
- Sealing: Double-sided lip seal covered with a plate
- Clearance: C3 (Greater than Normal)
- Overall Length (L): 126 mm
- Overall Width (A): 38 mm
- Bolt Hole Spacing (J): 95 mm
- Dimension (F): 33.3 mm
- Dimension (F2): 65 mm
- Weight: 0.56 kg
- Country of Origin: China
The SUCP204-12 RICH is a premium Stainless Steel Pillow Block Bearing Unit manufactured by RICH. This unit is specifically engineered for environments requiring superior hygiene and corrosion resistance, such as food and beverage processing, pharmaceuticals, and chemical handling. The housing and insert are constructed from Stainless Steel, offering maximum protection against moisture, washdowns, and harsh substances. Designed to accommodate a 19.05 mm shaft, the unit features a double-sided lip seal covered with a plate for exceptional protection against contaminants and moisture ingress. Furthermore, it incorporates C3 (Greater than Normal) internal clearance, making it ideal for applications involving high operating temperatures or thermal expansion. The sturdy pillow block design allows for secure, two-bolt mounting (J: 95 mm) to a machine foundation.
Key Performance Advantages:
- High Corrosion Resistance: Full stainless steel construction ideal for wet and harsh environments.
- Enhanced Protection: Double-sided lip seal with plate ensures superior sealing against contaminants.
- C3 Clearance: Greater than normal internal clearance suitable for high-temperature operation or heavy loads.
- Secure Mounting: Robust pillow block design allows for simplified two-bolt installation on foundations.
Data sheet
Inner Diameter
19,05
Weight
0,56
Clearance
C3 (Greater than Normal)
