RCB-101416 RICH 15.87x22.22x25.4

RICH
RCB101416
€11.48
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

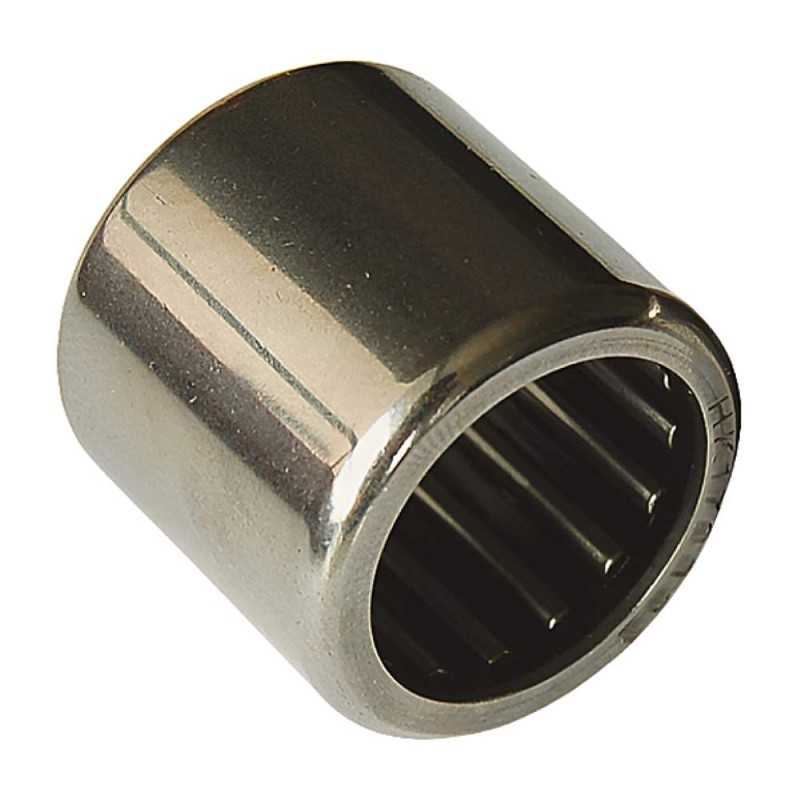

Drawn Cup Roller Clutch with Bearing RCB-101416 RICH - 15.87 x 22.22 x 25.4 mm

The RCB-101416 RICH is a drawn cup roller clutch integrated with a bearing, designed for applications requiring one-way rotation or indexing capabilities. This compact unit features precisely formed sprags or rollers that allow free rotation in one direction and immediately lock in the opposite direction, providing a reliable clutching action. The integrated bearing supports radial loads, making it a complete solution for various power transmission needs. Its drawn cup outer ring provides a space-saving design and allows for simple, economical installation by pressing it into a housing bore. The dimensions of this unit are 15.87 mm inner diameter, 22.22 mm outer diameter, and 25.4 mm width, with a very light approximate weight of 0.002 kg. Manufactured in China by RICH.

Key Specifications:

  • Type: Drawn Cup Roller Clutch with Bearing
  • Dimensions: 15.87 mm inner diameter x 22.22 mm outer diameter x 25.4 mm width
  • Weight: 0.002 kg
  • Functionality: One-way rotation, indexing
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Compact, Space-Saving Design
  • Integrated Bearing for radial load support
  • Reliable One-Way Clutch or indexing action
  • Simple Press-Fit Installation
  • Lightweight
  • Durable Construction

Data sheet

Inner Diameter
16,87
Outer Diameter
22,22
Width
25,4
Weight
0,002
Cage
Steel Cage
Category
Drawn Cup Roller Clutch with Bearing
