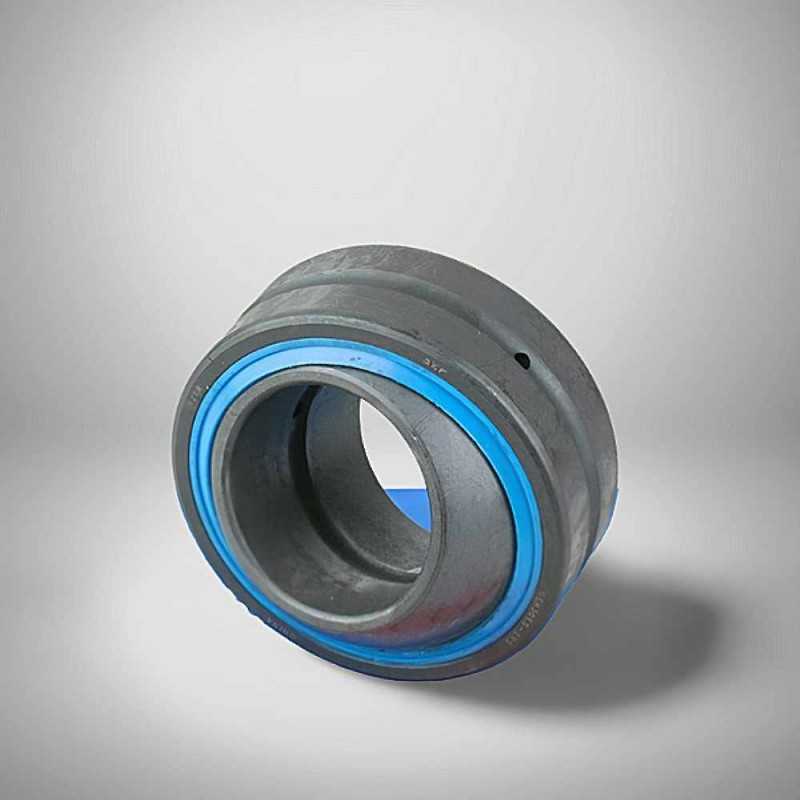

The GEH 50 ES-2RS RICH is a double-sealed spherical plain bearing (50 x 90 x 56 mm) with a wider inner ring for improved stability under heavy loads and in contaminated environments.
The GEH 50 ES-2RS RICH is a robust spherical plain bearing designed to accommodate misalignment between the shaft and the housing. The H in its designation indicates a wider inner ring, which provides greater shaft support and enhanced stability in the application. Its design features a hardened inner ring with a spherical outer surface that fits into a correspondingly spherical, but fractured, outer ring. The ES suffix indicates that the outer ring has a fracture slot, simplifying the mounting process. This bearing's durable steel/steel friction pair is suitable for heavy loads, and the bearing comes equipped with double-sided rubber seals (2RS). These seals provide excellent protection against dust, dirt, and moisture, while also helping to retain lubricant, thereby extending the bearing's service life and reducing maintenance needs. This RICH bearing is an ideal solution for applications involving oscillating, tilting, and swiveling movements in demanding and contaminated environments, such as in hydraulic cylinders and heavy machinery.
Data sheet
The GEH 50 ES-2RS RICH is a double-sealed spherical plain bearing (50 x 90 x 56 mm) with a wider inner ring for improved stability under heavy loads and in contaminated environments.
