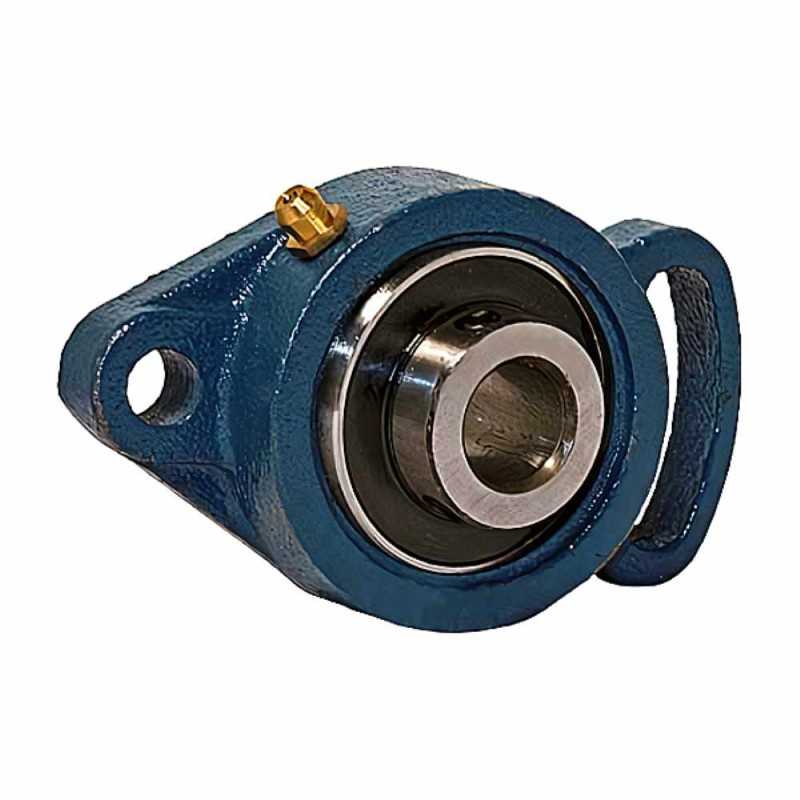

UCFA205 RICH Cast Iron Bearing Unit - 25 mm

Technical Specifications:

  • Brand: RICH
  • Type: Cast Iron Bearing Unit
  • Inner Diameter (d): 25 mm
  • Housing Length (L): 65 mm
  • Housing Overall Width (A): 27 mm
  • Base to Center Height (A1): 14 mm
  • Overall Length (L2): 70 mm
  • Bolt Hole Spacing (J): 98 mm
  • Overall Height (F2): 124 mm
  • Bolt Hole Diameter (N): 13 mm
  • Weight: 0.65 kg
  • Cage: Steel
  • Clearance: C3 - greater than normal
  • Country of Origin: China

The UCFA205 RICH is a robust cast iron bearing unit with a round two-bolt flanged housing, designed for reliable performance in industrial and agricultural applications. The cast iron housing provides strength and stability, making it a durable solution for supporting rotating shafts. The round flange is ideal for mounting on machine frames or walls where a round mounting surface is preferred. This unit features a C3 greater than normal clearance, which is beneficial for accommodating higher speeds, temperature variations, and moderate misalignment. The bearing unit is pre-assembled and ready for installation, simplifying mounting and reducing downtime.

Key Performance Advantages:

  • Durability: Robust cast iron construction provides strength and resilience in demanding environments.
  • C3 Clearance: The greater-than-normal clearance is ideal for higher-speed and high-temperature applications.
  • Easy Installation: Pre-assembled unit with bolt holes for quick and simple mounting.
  • Versatile Use: Suitable for a wide range of industrial and agricultural applications due to its design and material.
