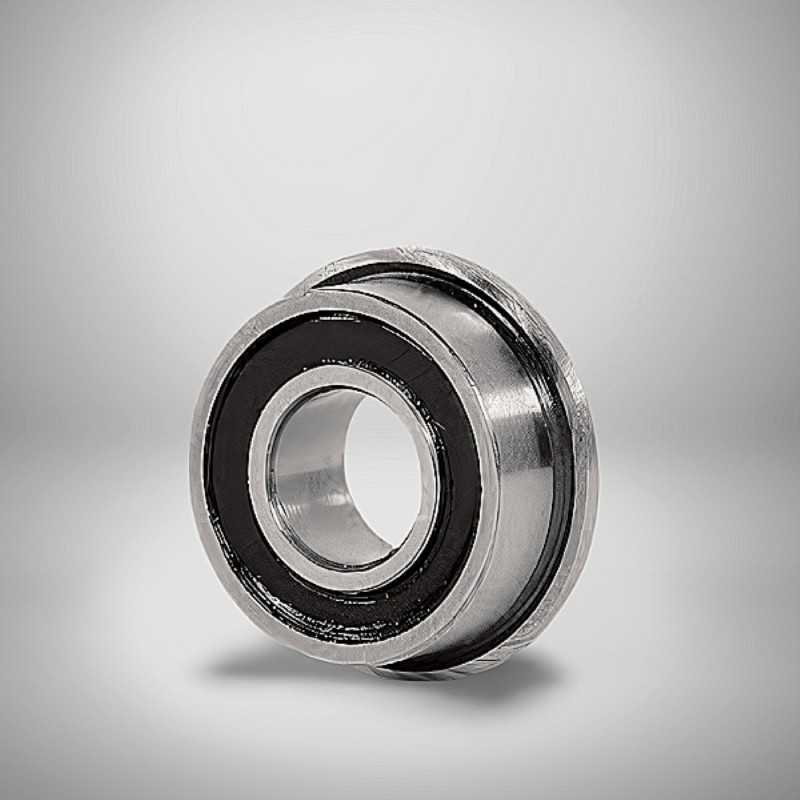

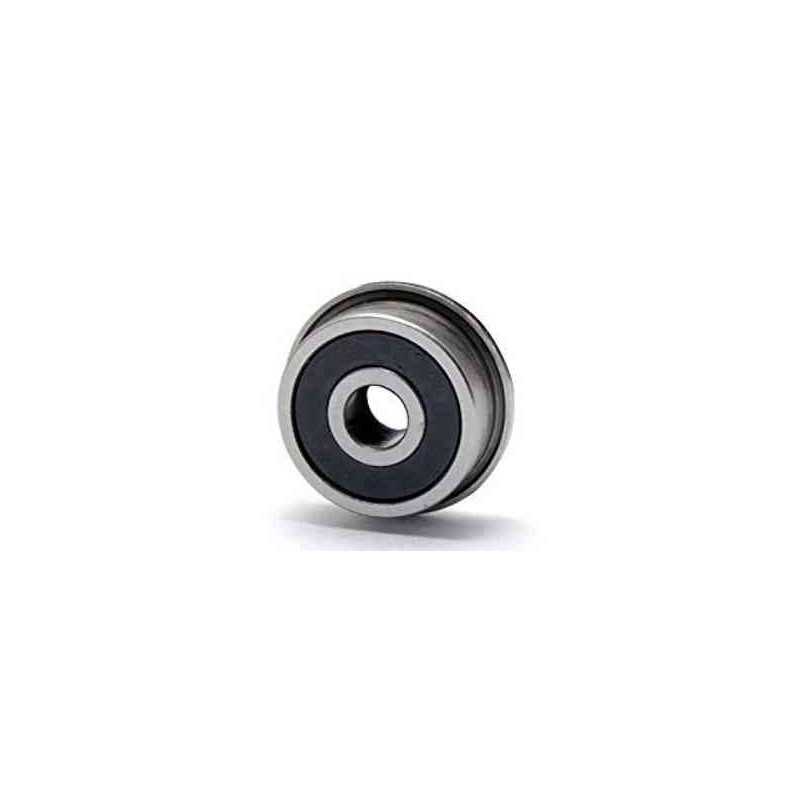

F6903-2RS RICH Flanged Deep Groove Ball Bearing - 17x30x7 mm
The F6903-2RS RICH is a flanged single row deep groove ball bearing, also known as a flanged radial ball bearing, designed for precise positioning and secure mounting in various applications. Featuring dimensions of 17 mm (inner diameter) x 30 mm (outer diameter) x 7 mm (width) and a weight of approximately 0.018 kg, this bearing incorporates a durable steel cage, guided by the rolling elements, for smooth and reliable operation. The CN (Normal) internal clearance ensures optimal performance under typical load and speed conditions. The integrated flange with a diameter (D1) of 32.5 mm simplifies axial location and mounting. Equipped with double-sided rubber contact seals (2RS)
Key Specifications:
- Bearing Type: Flanged Deep Groove Ball Bearing (also known as Flanged Radial Ball Bearing)
- Model: F6903-2RS RICH
- Dimensions: 17 mm (Inner Diameter) x 30 mm (Outer Diameter) x 7 mm (Width)
- Weight: 0.018 kg
- Cage Material: Steel, guided by rolling elements
- Internal Clearance: CN (Normal)
- Material (Races & Rolling Elements): Bearing Steel (100Cr6 / 1.3505 / AISI52100 / ŁH13 / SUJ1407)
- Sealing: Double-sided Rubber Contact Seals (2RS) - provides excellent protection against dust and contaminants.
Key Features:
- Flanged Design: Simplifies axial location and mounting.
- Precise Positioning: The flange facilitates accurate placement.
- Effective Sealing (2RS): Double rubber contact seals provide superior protection against contaminants.
- High-Quality Materials: Constructed from durable bearing steel for long service life.
- Suitable for High Speeds: Achievable speeds up to 14000 rpm with oil lubrication.
- Robust Construction: Steel cage guided by rolling elements ensures reliable operation.
Data sheet
Inner Diameter
17
Outer Diameter
30
Width
7
Weight
0,02
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Clearance
CN (Normal)
