F 6802 ZZ RICH 15x24x5 F6802ZZ RICH
search
  • F 6802 ZZ RICH 15x24x5 F6802ZZ RICH

F 6802 ZZ RICH 15x24x5

RICH
F6802ZZ
€1.31
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

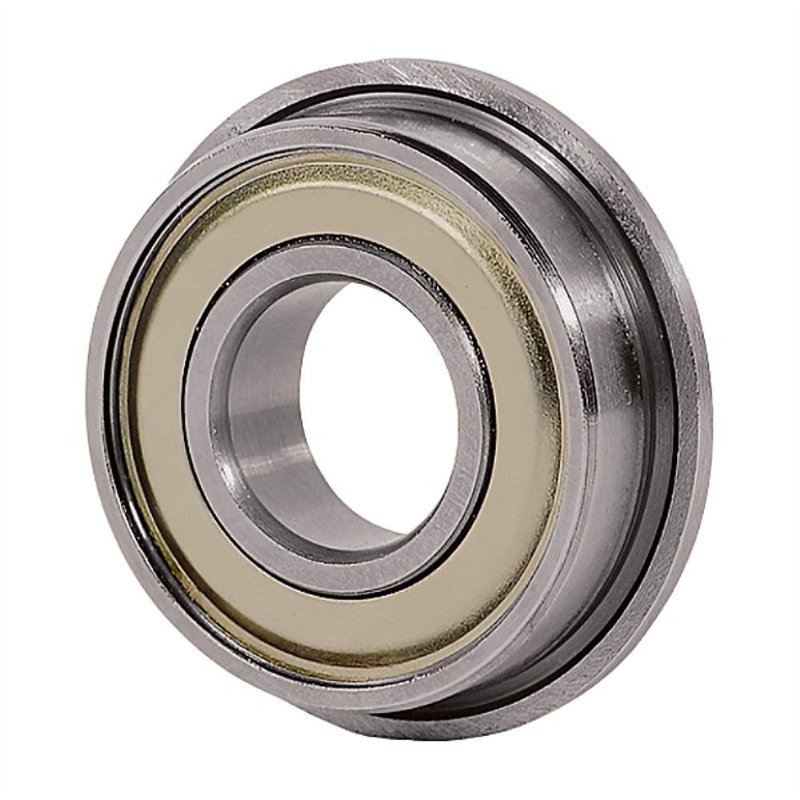

F6802ZZ RICH Flanged Deep Groove Ball Bearing - 15 x 24 x 5 mm, Double Shielded

The F6802ZZ RICH is a flanged single row deep groove ball bearing designed for applications requiring precise positioning and smooth operation. It has key dimensions of 15 mm inner diameter, 24 mm outer diameter, and a width of 5 mm. The flange diameter (D1) is 26 mm, which aids in axial location. This bearing features a steel cage that is guided by the rolling elements and weighs approximately 0.008 kg. It has CN (normal) radial internal clearance. It is made in China. The "ZZ" suffix indicates that the bearing has double-sided metal shields for protection against dust and contaminants. Flanged deep groove ball bearings can accommodate radial and axial loads and are often used in applications where axial positioning is critical.

Key Specifications:

  • Type:** Flanged Single Row Deep Groove Ball Bearing
  • Model:** F6802ZZ RICH
  • Inner Diameter (d): 15 mm
  • Outer Diameter (D): 24 mm
  • Width (B): 5 mm
  • Flange Diameter (D1): 26 mm
  • Cage Material:** Steel, guided by rolling elements
  • Radial Internal Clearance:** CN (Normal)
  • Sealing:** Double-sided metal shields (ZZ)
  • Weight:** 0.008 kg
  • Country of Origin:** China

Key Features:

  • Flanged Outer Ring:** Facilitates axial positioning and simplifies mounting.
  • Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
  • Steel Cage:** Provides high strength and durability, ensuring proper ball guidance.
  • CN Clearance:** Standard radial internal clearance for general applications.
  • Double Metal Shields (ZZ): Offers good protection against dust and contaminants.
  • Compact and Lightweight:** Ideal for applications with space and weight limitations.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
4
Outer Diameter
10/11,6
Width
4
Weight
0,008
Ball Rows
Single Row
Clearance
CN (Normal)
Category
Flanged Deep Groove Ball Bearing
