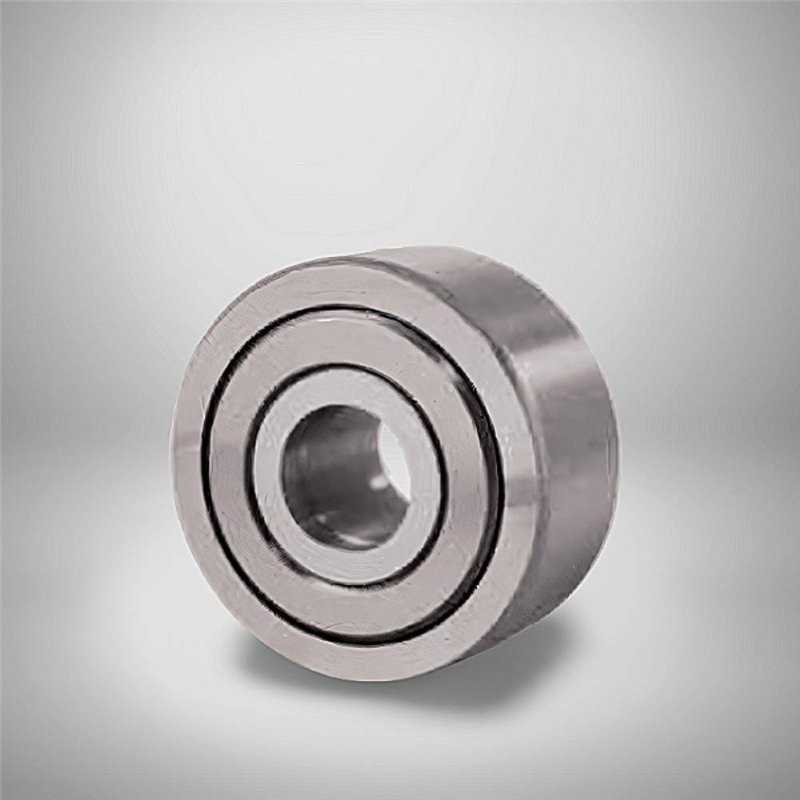

NATV 6.PP RICH Yoke Roller - 6 x 19 x 12 mm

Technical Specifications:

  • Brand: RICH
  • Type: Yoke Roller (Cam Follower without Stud)
  • Model: NATV 6.PP
  • Dimensions: 6 x 19 x 12 mm
  • Bore Diameter (d): 6 mm
  • Outer Diameter (D): 19 mm
  • Overall Width (B): 12 mm
  • Outer Ring Width (C): 11 mm
  • Weight: 0.024 kg
  • Outer Ring Profile: Rounded (Crowned/Spherical)
  • Cage: Full Complement (No Cage)
  • Sealing: Double-sided contact rubber seals (PP)
  • Country of Origin: China

The NATV 6.PP RICH is a highly capable Yoke Roller engineered for maximum performance, featuring a full complement of needle rollers which significantly increases its load carrying capacity. A key feature is the rounded outer ring, which minimizes damaging edge stresses and compensates for minor misalignments. Furthermore, the double-sided contact rubber seals (PP) provide a robust barrier against contaminants while ensuring lubricant retention. Its compact size and 6 x 19 x 12 mm dimensions make it highly suitable for motion systems requiring durability and space efficiency.

Key Performance Advantages:

  • Maximum Load Capacity: Full complement roller set provides the highest possible static and dynamic load rating for its size.
  • Minimized Edge Stress: The rounded outer ring (crowned profile) distributes load evenly, extending service life and reliability.
  • Effective Sealing (PP): Double-sided contact rubber seals protect the internal components and ensure long-term, low-maintenance operation.
  • Precision and Durability: Built for accurate guidance in cam mechanisms and linear motion systems.

Data sheet

Inner Diameter
6
Outer Diameter
19
Width
12
Weight
0,024
