6904-2RS/C3 RICH 20x37x9
Rating:
(0)
EUR €
- EUR €
- USD $

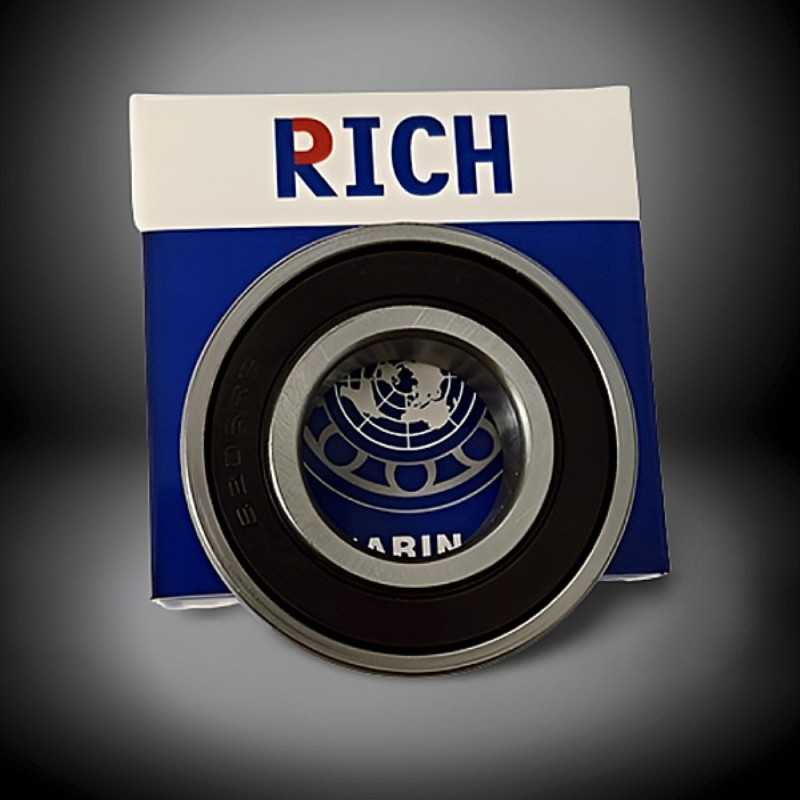

6904-2RSC3 RICH Single Row Deep Groove Ball Bearing - 20 x 37 x 9 mm
The 6904-2RSC3 RICH is a single row deep groove ball bearing designed for applications where a balance of size, weight, and performance is needed, along with consideration for thermal expansion or higher operating speeds. This bearing has key dimensions of 20 mm inner diameter, 37 mm outer diameter, and a width of 9 mm. It features a steel cage and a C3 radial clearance, which is greater than normal. It weighs 0.037 kg and is made in China. The bearing is equipped with double-sided rubber contact seals (2RS) for effective protection against dust, dirt, and moisture. The C3 clearance is suitable for conditions where thermal expansion or higher rotational speeds are anticipated.
Key Specifications:
- Bearing Type: Single Row Deep Groove Ball Bearing
- Model:** 6904-2RSC3 RICH
- Inner Diameter (d):** 20 mm
- Outer Diameter (D):** 37 mm
- Width (B):** 9 mm
- Cage Material:** Steel
- Clearance:** C3 (Greater than Normal)
- Sealing:** Double-sided rubber, contact (2RS)
- Weight:** 0.037 kg
- Country of Origin:** China
Key Features:
- Balanced Dimensions:** Offers a good compromise between size and load capacity.
- Deep Groove Geometry:** Supports radial and axial loads in both directions.
- Steel Cage:** Provides good strength and durability.
- C3 Clearance:** Accommodates thermal expansion and suitable for higher speeds.
- Contact Seals (2RS):** Offers excellent protection against contaminants and retains lubricant effectively.
- Versatile Application:** Suitable for various industrial, electromechanical, and precision applications.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
20
Outer Diameter
37
Width
9
Weight
0,04
Ball Rows
Single Row
Clearance
C3 (Greater than Normal)
