HF3520 RICH 35x42x20 HF3520 RICH
search
  • HF3520 RICH 35x42x20 HF3520 RICH

HF3520 RICH 35x42x20

RICH
HF3520
€2.00
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

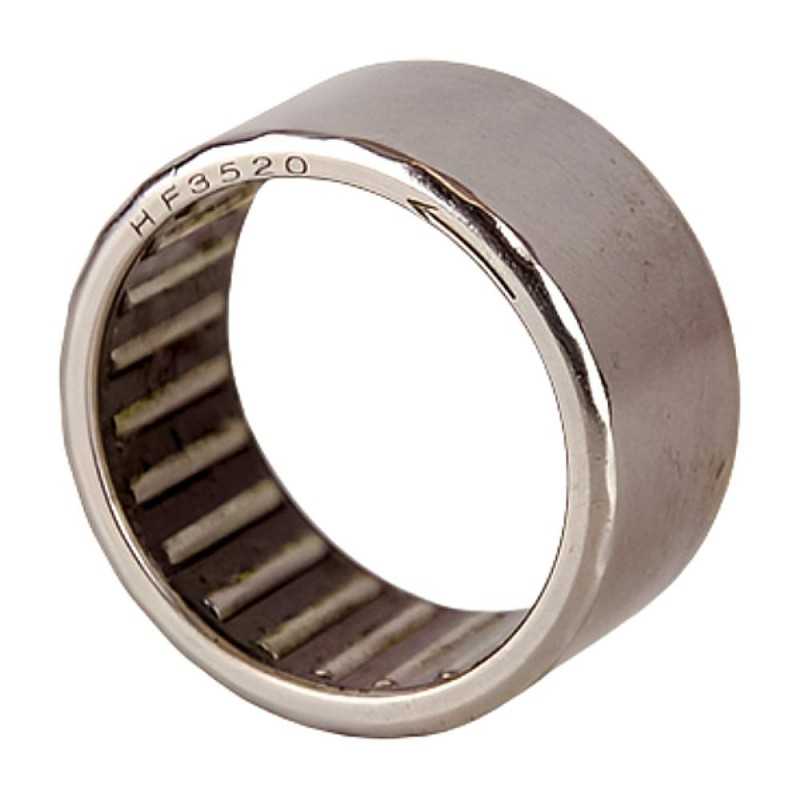

Drawn Cup Roller Clutch HF 3520 RICH - 35 x 42 x 20 mm

The HF 3520 RICH is a drawn cup roller clutch designed for applications requiring one-way rotation, overrunning, or indexing. This compact unit features precisely formed sprags or rollers that allow free rotation in one direction and immediately lock in the opposite direction, providing reliable clutching action. Its drawn cup outer ring provides a space-saving design and allows for simple, economical installation by pressing it into a housing bore. This type of clutch is widely used in various industrial and mechanical systems where precise, unidirectional power transmission is needed, such as in conveyors, printing presses, or machinery. The dimensions of this unit are 35 mm inner diameter, 42 mm outer diameter, and 20 mm width, with an approximate weight of 0.041 kg. Manufactured in China by RICH.

Key Specifications:

  • Type: Drawn Cup Roller Clutch
  • Dimensions: 35 mm inner diameter x 42 mm outer diameter x 20 mm width
  • Weight: 0.041 kg
  • Functionality: One-way rotation, overrunning, indexing
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Compact, Space-Saving Design
  • Reliable One-Way Clutch action
  • Simple Press-Fit Installation
  • Lightweight
  • Durable Construction

Data sheet

Inner Diameter
35
Outer Diameter
42
Width
20
Weight
0,041
Category
Drawn Cup Roller Clutch
