LS 5070 RICH 50x70x4 LS5070 RICH
search
  • LS 5070 RICH 50x70x4 LS5070 RICH

LS 5070 RICH 50x70x4

RICH
LS5070
€1.63
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

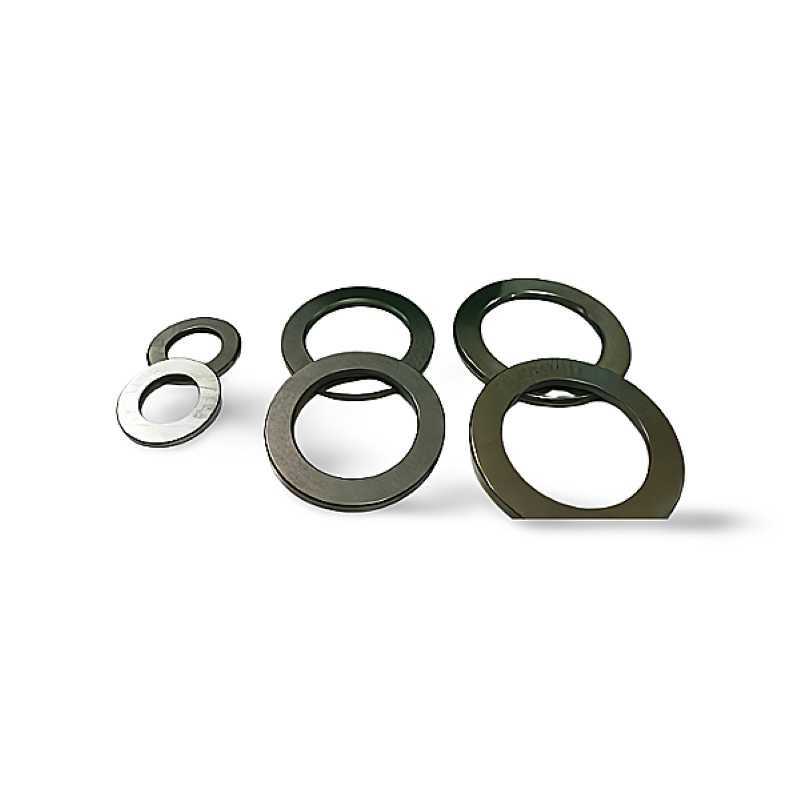

LS 5070 RICH Axial Bearing Washer - 50 x 70 x 4 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: LS 5070
  • Brand: RICH
  • Bore Diameter (d): 50 mm
  • Outer Diameter (D): 70 mm
  • Thickness (H): 4 mm
  • Weight: 0.053 kg
  • Country of Origin: China

The LS 5070 RICH is a heavy-duty axial bearing washer engineered to provide a hardened, precision raceway surface for axial (thrust) needle roller and cage assemblies. This washer is essential in applications where the adjacent machine components are not suitable as bearing raceways due to insufficient hardness or surface finish. With dimensions of 50 mm bore, 70 mm outer diameter, and a robust 4 mm thickness, the LS 5070 RICH is designed for superior performance, facilitating high axial load support and low friction. This component ensures the reliable and extended service life of the corresponding needle roller thrust bearing in demanding applications.

Key Performance Advantages:

  • Precision Raceways: Provides a hardened, finely ground surface for optimal thrust bearing performance.
  • Axial Load Support: Facilitates smooth operation and high capacity under thrust forces.
  • Robust Thickness: 4 mm thickness provides high stability for heavy-duty applications.
  • Versatility: Can be used as either a shaft or housing washer (AS or WS) for needle roller thrust bearings.
  • RICH Quality: A high-quality component essential for maximizing thrust bearing life.

Data sheet

Inner Diameter
50
Outer Diameter
70
Width
4
Weight
0,053
Category
Axial Bearing Washer
