F 686-ZZ RICH 6x13x5

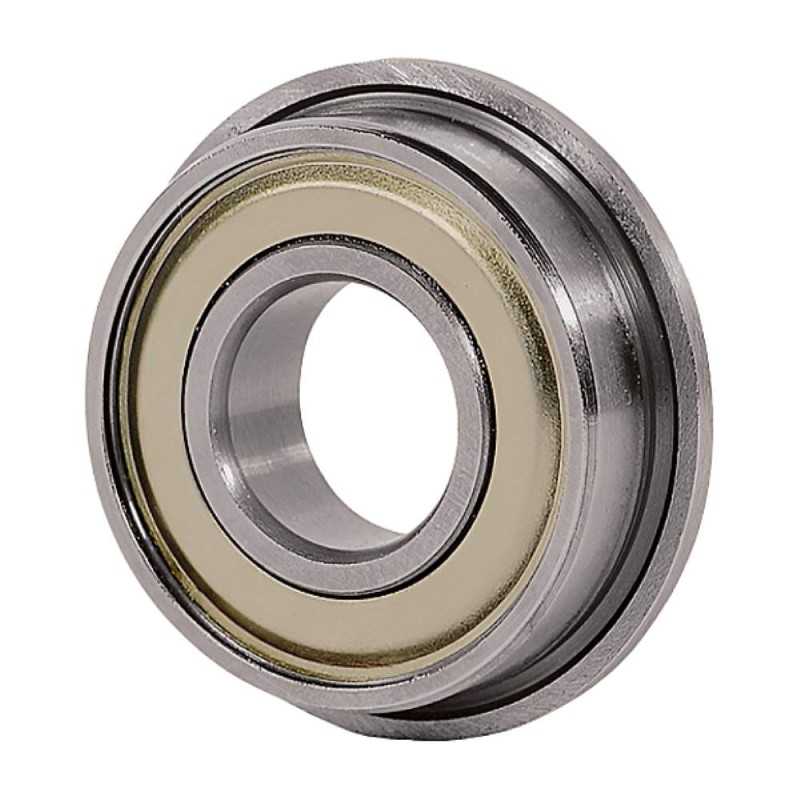

F-686.ZZ RICH – Miniature Flanged Deep Groove Ball Bearing – 6 x 13 x 5 mm

Technical Specifications:

• Type: Miniature flanged single row deep groove ball bearing
• Brand: RICH
• Model Designation: F-686.ZZ
• Inner Diameter (d): 6 mm
• Outer Diameter (D): 13 mm
• Width (B): 5 mm
• Flange Diameter (D1): 15 mm
• Rolling Element Diameter (Dw): 2 mm
• Internal Clearance: CN (Normal clearance)
• Cage Material: Steel (ball-guided)
• Sealing: Double-sided non-contact shields (ZZ)
• Weight: 0.003 kg
• Country of Origin: China

Product Details:

• Components: Consists of a miniature inner ring, an outer ring engineered with an integral solid locating flange, a single row configuration of 2 mm precision steel balls, a ball-guided steel cage, and double-sided sheet steel non-contact shields.
• Internal Geometry: Features deep, precision-ground raceway tracks engineered to support combined radial and axial loads in high-speed, space-critical instruments, utilizing a double-shielded layout that limits lubricant migration while maintaining low frictional torque thresholds.
• Dimensional Set: Ultra-compact metric architecture profile comprising a 6 mm shaft bore, a 13 mm outer tracking diameter, a 5 mm structural width, and a 15 mm outer precision flange diameter.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
