LS 6590 RICH 65x90x5,25 LS6590 RICH
search
  • LS 6590 RICH 65x90x5,25 LS6590 RICH

LS 6590 RICH 65x90x5,25

RICH
LS6590
€2.73
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

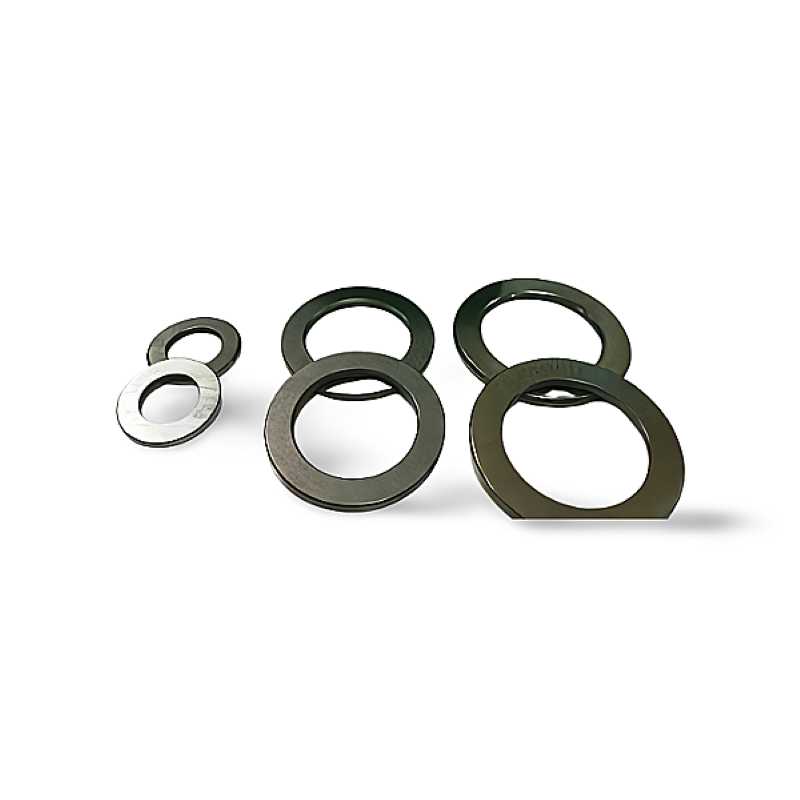

LS 6590 RICH Axial Bearing Washer - 65x90x5,25 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: LS 6590
  • Brand: RICH
  • Bore Diameter (d): 65 mm
  • Outer Diameter (D): 90 mm
  • Thickness (H): 5.25 mm
  • Country of Origin: China

The LS 6590 RICH is a precision-engineered axial bearing washer designed to serve as a high-quality, hardened raceway surface. It is typically paired with axial (thrust) needle roller and cage assemblies in situations where the adjacent machine components lack the sufficient hardness or finish required for a proper bearing raceway. With compact dimensions of 65 mm bore, 90 mm outer diameter, and a slim 5.25 mm thickness, the LS 6590 RICH is built to facilitate high axial load support and low friction within a minimal axial space. This component is crucial for ensuring the reliable and extended service life of the corresponding thrust bearing in demanding applications.

Key Performance Advantages:

  • Precision Raceways: Provides a hardened, finely ground surface for optimal thrust bearing performance.
  • Axial Load Support: Facilitates smooth operation and high capacity under thrust forces.
  • Compact Dimensions: Ideal 65x90x5,25 mm size for small-scale thrust applications.
  • RICH Quality: A high-quality component essential for maximizing thrust bearing life.

Data sheet

Inner Diameter
65
Outer Diameter
90
Width
5,25
Weight
0,118
Category
Axial Bearing Washer
