SA 207 RICH 35x72x38,9 SA207 RICH
search
  • SA 207 RICH 35x72x38,9 SA207 RICH

SA 207 RICH 35x72x38,9


RICH
SA207
€2.03
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

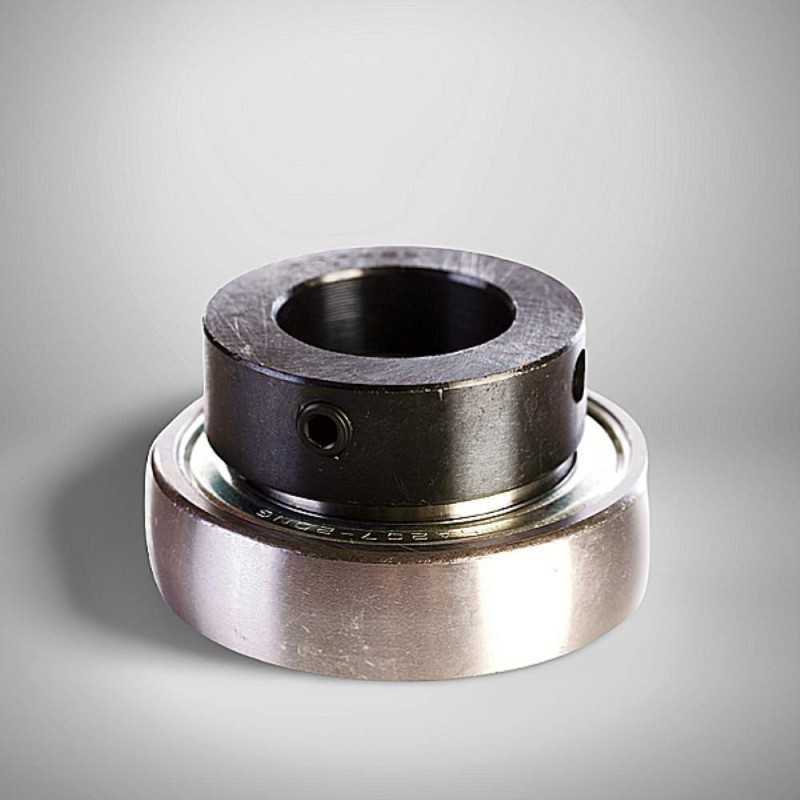

SA207 RICH Insert Ball Bearing - 35 x 72 x 38.9 mm

Technical Specifications:

  • Brand: RICH
  • Type: Insert Ball Bearing
  • Dimensions: 35 x 72 x 38.9 mm
  • Inner Ring Width: 25.4 mm
  • Outer Ring Width (C): 17 mm
  • Weight: 0.452 kg
  • Sealing: Double-sided rubber contact seals
  • Outer Ring Profile: Spherical
  • Country of Origin: China

The SA207 RICH is a robust insert ball bearing engineered for demanding industrial and agricultural applications. It is designed with a spherical (rounded) outer ring that allows it to compensate for initial static misalignment between the shaft and the housing, which is a common challenge in machinery. This bearing is equipped with double-sided rubber contact seals that provide effective protection against the ingress of dust, dirt, and moisture. This sealing system helps to retain the internal lubricant and ensures the bearing's reliable performance and extended service life in harsh environments.

Key Performance Advantages:

  • Misalignment Compensation: The spherical outer ring profile accommodates initial static misalignment, reducing stress on the bearing and shaft.
  • Effective Contamination Protection: Double-sided contact seals efficiently shield the bearing from harsh environmental elements.
  • Durability: Built to withstand demanding conditions, providing reliable and long-lasting performance.
  • Simplified Assembly: The bearing's design simplifies mounting and ensures a secure fit in compatible housings.

Data sheet

Inner Diameter
35
Outer Diameter
72
Width
38,9
Weight
0,452
Ball Rows
Single Row
Clearance
CN (Normal)
