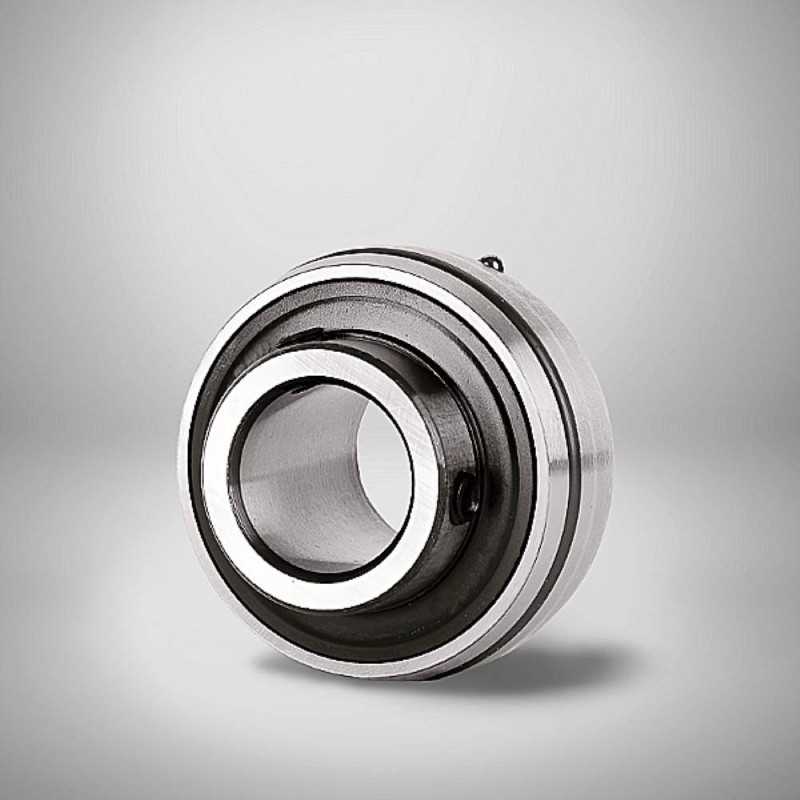

UC 206 RICH 30x62x38,1

UC206 RICH Insert Ball Bearing – 30 x 62 x 38.1 mm – Rounded Outer Ring & Double-Sided Lip Seal

Technical Specifications:

• Bearing Type: Insert Ball Bearing
• Model Designation: UC206
• Brand: RICH
• Precision Dimensions:
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 62 mm
  • Inner Ring Width: 38.1 mm
  • Outer Ring Width (C): 18 mm
• Weight: 0.318 kg
• Outer Ring Profile: Rounded
• Groove on Outer Ring: Yes
• Sealing: Double-sided lip seal covered with a plate
• Country of Manufacture: China
• Cross-Reference Part Numbers: INS-SC-30M DODGE, SC-30M DODGE, 5167098 NEW HOLLAND

Experience reliable performance and enhanced protection with the UC206 RICH insert ball bearing! This bearing is expertly designed for applications where robust sealing and adaptability to minor misalignments are crucial. Its rounded outer ring is ideal for systems where the bearing runs against a curved track or within a spherical housing, accommodating slight shaft deflections and promoting smoother operation, thus extending the lifespan of both the bearing and the system. A key feature is the double-sided lip seal, covered with a protective metal plate. This sealing configuration provides excellent defense against the ingress of contaminants like dust, dirt, and moisture, while effectively retaining internal lubricant, ensuring extended operational life and reduced maintenance in various industrial and agricultural environments. The groove on the outer ring facilitates easier mounting and secure positioning within compatible housings.

With its precise dimensions of 30 mm inner diameter, 62 mm outer diameter, and an inner ring width of 38.1 mm (outer ring width of 18 mm), this RICH insert ball bearing is perfectly suited for agricultural machinery, conveyor systems, and other general industrial applications here in Europe and globally, which demand reliable performance under challenging conditions.

Proudly manufactured by RICH in China, this quality ball bearing is a direct replacement for cross-reference part numbers such as INS-SC-30M DODGE, SC-30M DODGE, and 5167098 NEW HOLLAND.

Key Performance Advantages:

• Accommodates Misalignment: Rounded outer ring design allows for minor angular misalignments, reducing stress and improving operational smoothness.
• Effective Sealing: Double-sided lip seal with metal plate provides robust protection against contaminants, extending bearing life in dirty environments.
• Enhanced Durability: Built for reliable, long-lasting performance in various industrial and agricultural settings.
• Easy Mounting: Outer ring groove aids in secure and straightforward installation.
• Reduced Maintenance: Superior sealing helps retain lubricant, decreasing the need for frequent re-lubrication.
• Versatile Application: Ideal for a wide range of machinery requiring durable and sealed insert bearings.
• RICH Quality & Compatibility: Manufactured in China by RICH, ensuring consistent quality and direct interchangeability with several OEM parts.
