  • HFL0822 RICH 8x12x22 HFL0822 RICH

HFL0822 RICH 8x12x22

RICH
HFL0822
€1.76
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

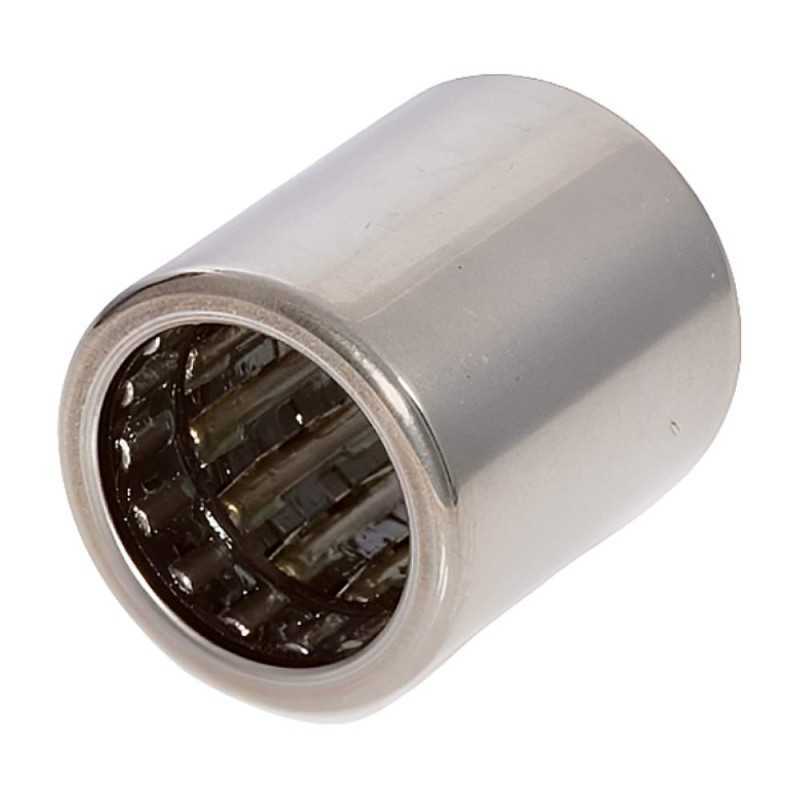

Drawn Cup Roller Clutch with Bearing HFL0822 RICH - 8 x 12 x 22 mm

The HFL0822 RICH is a drawn cup roller clutch integrated with a bearing. It's designed for applications that require one-way rotation, backstopping, or indexing capabilities. This compact unit features precisely formed rollers that allow free rotation in one direction and immediately lock in the opposite direction, providing reliable clutching action. The integrated needle roller bearing assembly supports radial loads, making this a complete and robust solution for various power transmission needs. Its drawn cup outer ring provides a space-saving design and allows for simple, economical installation by pressing it into a housing bore. This unit has an 8 mm inner diameter, 12 mm outer diameter, and 22 mm width, with a light weight of 0.011 kg. It's manufactured in China by RICH.

Key Specifications:

  • Type: Drawn Cup Roller Clutch with Bearing
  • Dimensions: 8 mm inner diameter x 12 mm outer diameter x 22 mm width
  • Weight: 0.011 kg
  • Functionality: One-way rotation, backstopping, indexing
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Compact, space-saving design
  • Integrated needle roller bearing for radial load support
  • Reliable one-way clutch action
  • Simple press-fit installation
  • Durable construction

Data sheet

Inner Diameter
8
Outer Diameter
12
Width
22
Weight
0,006
Cage
Steel Cage
Category
Drawn Cup Roller Clutch
