LS 1528 RICH 15x28x2,75

RICH
LS1528
€0.44
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

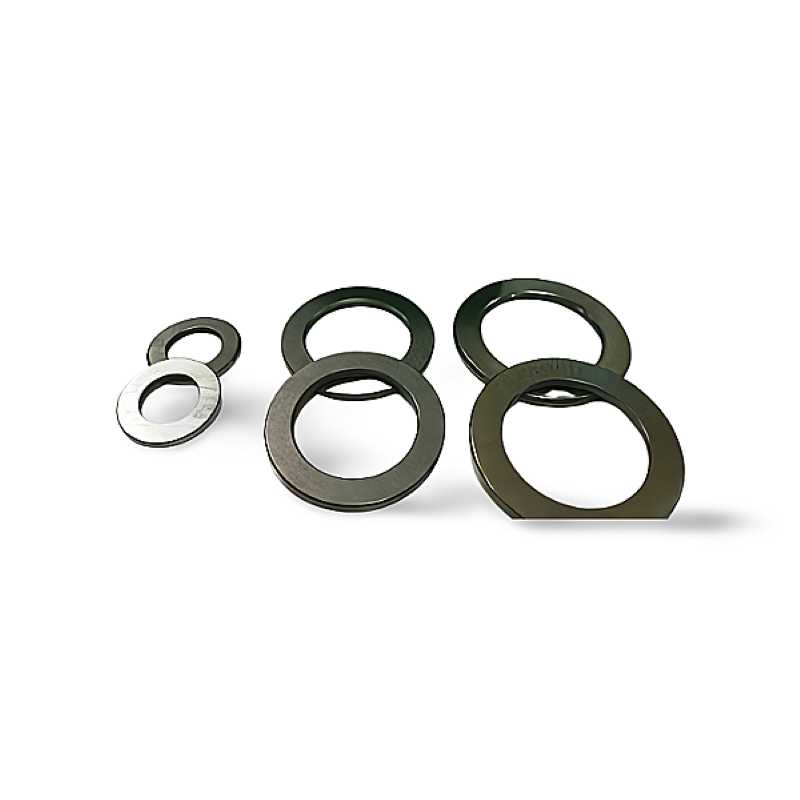

LS 1528 RICH Axial Bearing Washer - 15 x 28 x 2.75 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: LS 1528
  • Brand: RICH
  • Bore Diameter (d): 15 mm
  • Outer Diameter (D): 28 mm
  • Thickness (H): 2.75 mm
  • Weight: 0.008 kg
  • Country of Origin: China

The LS 1528 RICH is a precision-engineered axial bearing washer designed to serve as a hardened, finely ground raceway surface for axial (thrust) needle roller and cage assemblies. This washer is essential in applications where the adjacent machine components lack the necessary hardness or finish to function as a raceway. With dimensions of 15 mm bore, 28 mm outer diameter, and a slim 2.75 mm thickness, the LS 1528 RICH is built to support high axial load capacity while maintaining a compact axial profile. This robust component ensures low friction and reliable performance in demanding thrust applications.

Key Performance Advantages:

  • Precision Raceways: Provides a hardened, finely ground surface for optimal thrust bearing performance.
  • Axial Load Support: Facilitates smooth operation and high capacity under thrust forces.
  • Space-Saving Design: Slim 2.75 mm thickness is suitable for applications with restricted axial space.
  • Versatility: Can be used as either a shaft or housing washer for needle roller thrust bearings.
  • RICH Quality: A high-quality component essential for maximizing thrust bearing life.

Data sheet

Inner Diameter
15
Outer Diameter
28
Width
2,75
Weight
0,08
Category
Axial Bearing Washer
