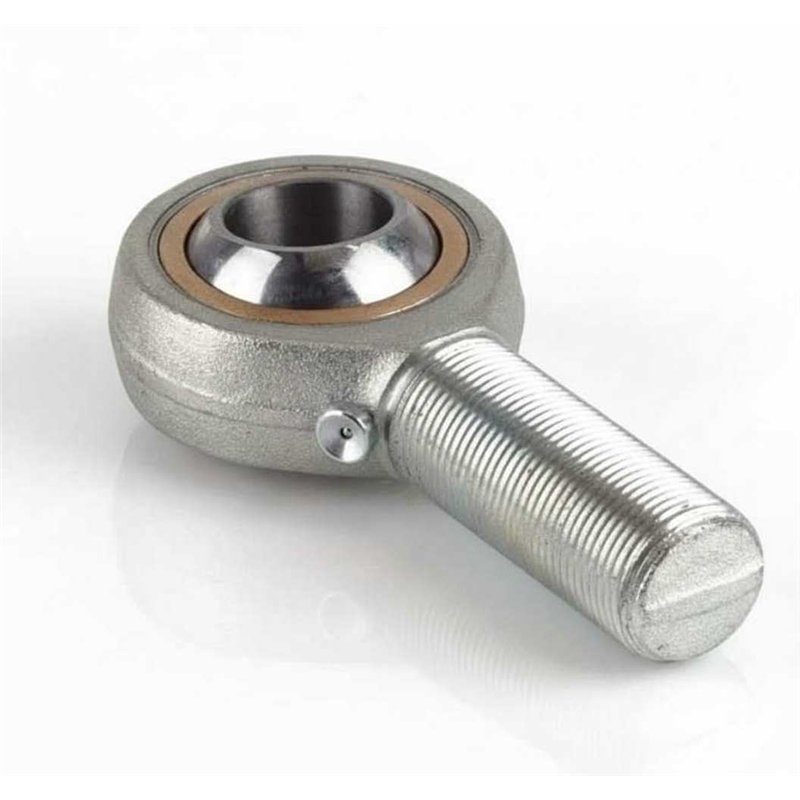

RGAS 8 RICH – Rod End | Thread Size: M8 GAS8 RICH
zoom_out_map
RGAS 8 RICH – Rod End | Thread Size: M8 GAS8 RICH

RGAS 8 RICH – Rod End | Thread Size: M8

Type: Rod End with Male Thread (Regreasable)
Model: RGAS 8 RICH
Dimensions: 8 mm Bore x 42 mm Height
Material: Zinc Plated Steel/Bronze
Brand: RICH
Origin: China
RICH
GAS8
€6.85
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RGAS 8 RICH – Rod End – 8 × 24 × 42 mm

Technical Specifications:

  • Type: Rod end with male thread (regreasable configuration)
  • Brand: RICH
  • Model Designation: RGAS 8
  • Inner Diameter (d): 8 mm
  • Outer Diameter (A): 24 mm
  • Height to Axis (F): 42 mm
  • Thread Size: M8
  • Thread Length (GL): 25 mm
  • Outer Ring Width (C): 9 mm
  • Inner Ring Width: 12 mm
  • Friction Pair: Steel/Bronze
  • Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
  • Inner Ring Material: Bearing steel (100Cr6 / AISI 52100)
  • Dimensional Series: K
  • Weight: 0.039 kg
  • Country of Origin: China

Construction Features:

  • Housing: Free-cutting steel body with male-threaded shank and zinc-plated surface treatment.
  • Lubrication Feature: Housing assembly equipped with an integrated grease nipple for periodic re-lubrication of the internal contact surfaces.
  • Sliding Configuration: Internal components incorporating a steel-on-bronze friction pair arranged for articulated movement.
  • Dimensional Format: 8 × 24 × 42 mm configuration consistent with standardized geometry for series K rod ends.

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
8
Category
Rod End
