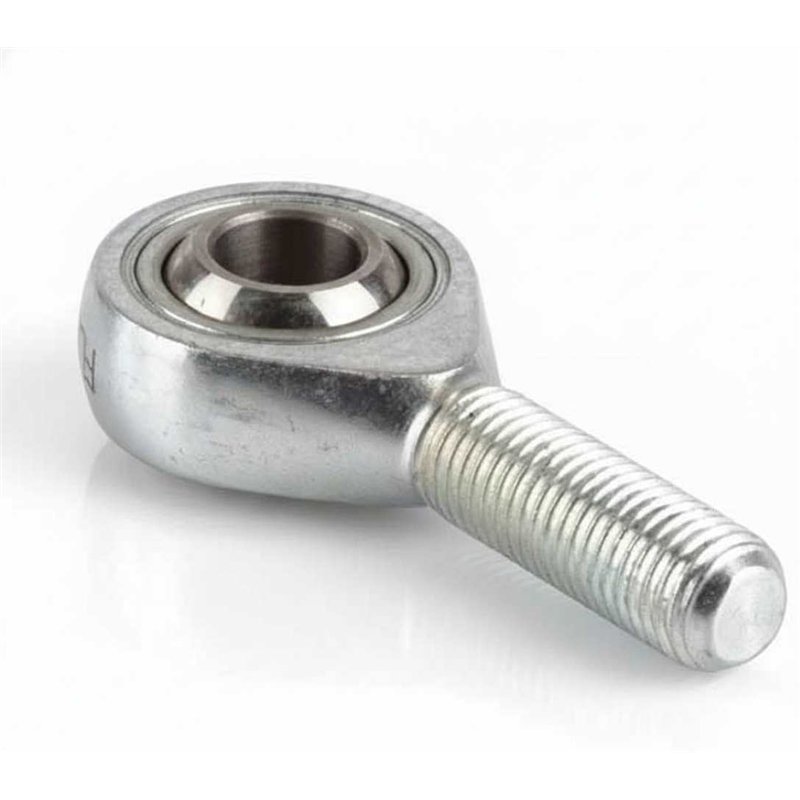

RGASW 10 C2 RICH – Rod End | Thread Size: M10 GASW10C2 RICH
zoom_out_map
RGASW 10 C2 RICH – Rod End | Thread Size: M10 GASW10C2 RICH

RGASW 10 C2 RICH – Rod End | Thread Size: M10

Type: Rod End with Male Thread (Maintenance-free)
Model: RGASW 10 C2 RICH
Dimensions: 10 mm Bore x 48 mm Height
Clearance: C2 (Reduced)
Brand: RICH
Origin: China
RICH
GASW10C2
€8.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RGASW 10 C2 RICH – Rod End – 10 x 28 x 48 mm

Technical Specifications:

  • Type: Rod end with male thread (Maintenance-free)
  • Brand: RICH
  • Model Designation: RGASW 10 C2
  • Inner Diameter (d): 10 mm
  • Outer Diameter (A): 28 mm
  • Height to Axis (F): 48 mm
  • Thread Size: M10 (Standard pitch)
  • Thread Length (GL): 28 mm
  • Outer Ring Width (C): 10.5 mm
  • Clearance: C2 (Smaller than normal)
  • Friction Pair: Steel/PTFE
  • Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
  • Dimensional Series: K
  • Weight: 0.063 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Male-threaded rod end housing precision-machined from free-cutting steel with a corrosion-resistant zinc-plated surface.
  • Maintenance Profile: Maintenance-free design incorporating a high-performance PTFE liner, engineered for operational stability under dynamic loads.
  • Clearance Configuration: C2 internal clearance specification providing a tighter-than-normal fit for applications requiring enhanced precision.
  • Friction Interface: Self-lubricating steel on PTFE sliding contact surface designed to minimize frictional torque and wear.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
10
Category
Rod End
