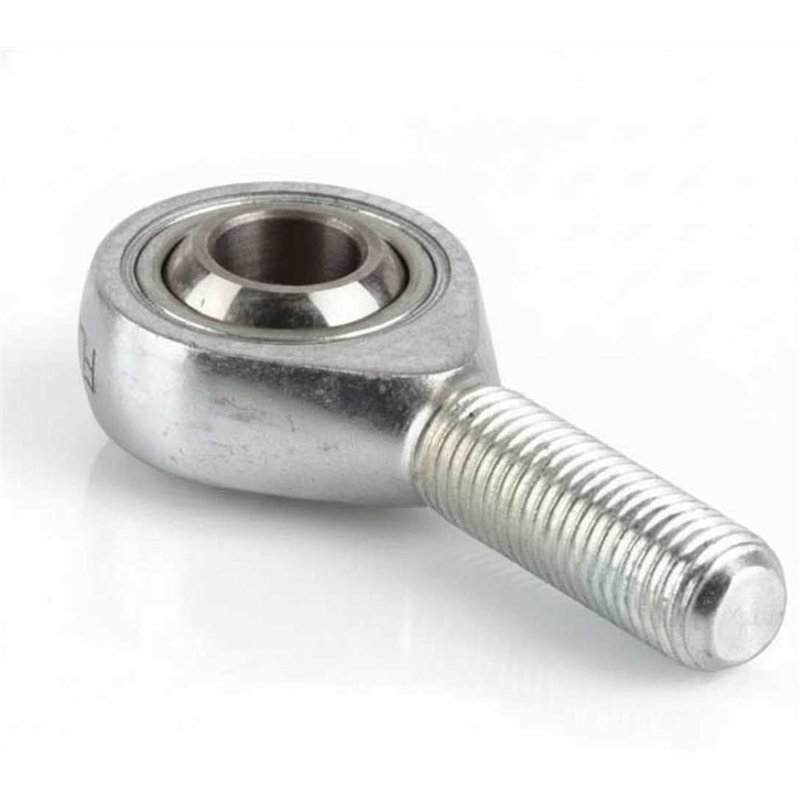

RGASW 18 RICH – Rod End | Thread Size: M18

RGASW 18 RICH – Rod End – 18 x 46 x 72 mm

Technical Specifications:

• Type: Rod end with male thread (PTFE liner configuration)
• Brand: RICH
• Model Designation: RGASW 18
• Inner Diameter (d): 18 mm
• Outer Diameter (A): 46 mm
• Height to Axis (F): 72 mm
• Thread Size: M18
• Thread Length (GL): 44 mm
• Outer Ring Width (C): 16.5 mm
• Friction Pair: Steel/PTFE
• Housing Material: Carbon construction steel (C22 / AISI 1020)
• Dimensional Series: K
• Weight: 0.273 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing manufactured from AISI 1020 carbon construction steel with a zinc-plated surface finish.
• Sliding Configuration: Internal assembly featuring a PTFE liner typically used in maintenance-free construction types.
• Friction Interface: Steel on PTFE sliding contact surface designed for articulation under dynamic load conditions.
• Dimensional Format: Technical profile compliant with dimensional series K standards.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
