RAE25-NPP-B 3L 25x52x31 RAE25NPPB3L RICH
search
  • RAE25-NPP-B 3L 25x52x31 RAE25NPPB3L RICH

RAE25-NPP-B 3L 25x52x31

RICH
RAE25NPPB3L
€4.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

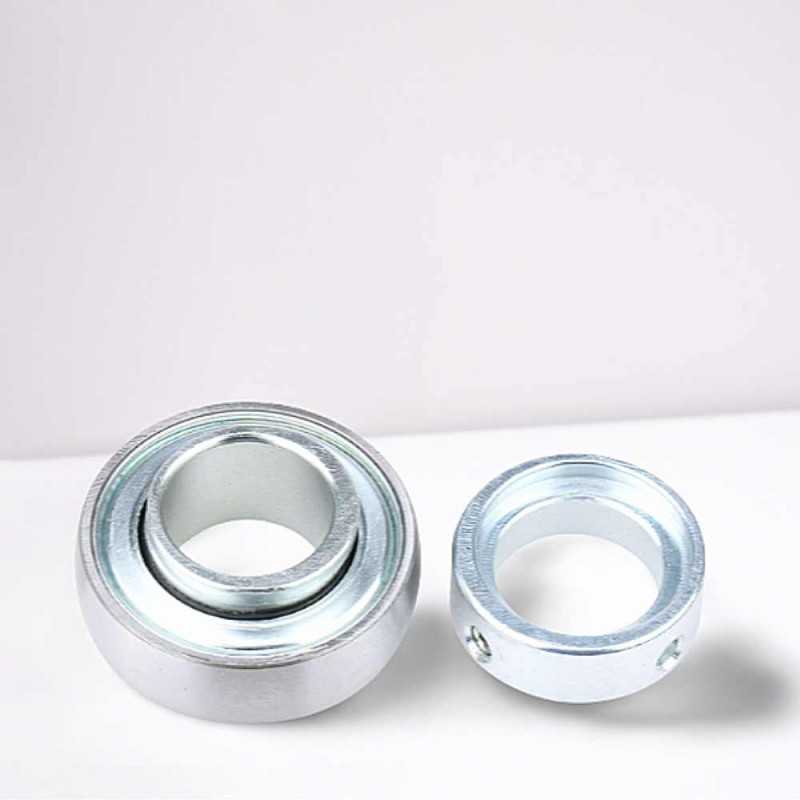

RAE25-NPP-B 3L RICH Insert Ball Bearing - 25 x 52 x 31 mm

OE References:

  • DODGE: INS-SXV-25M.LL, SXV-25M.LL

Technical Specifications:

  • Bearing Type: Insert Ball Bearing
  • Model Designation: RAE25-NPP-B 3L
  • Brand: RICH
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 52 mm
  • Overall Width (T): 31 mm
  • Inner Ring Width (B): 21.4 mm
  • Outer Ring Width (C): 15 mm
  • Clearance: C3 - greater than normal
  • Rounded Outer Ring: Yes
  • Sealing: Triple lip seal covered with metal plate on both sides - suitable for heavily contaminated applications. Low rotation speeds.
  • Weight: 0.206 kg
  • Country of Manufacture: China

The RAE25-NPP-B 3L RICH insert ball bearing, meticulously manufactured by RICH in China, is engineered for exceptional durability and reliable performance in the most challenging and heavily contaminated applications. With precise dimensions of 25 mm inner diameter, 52 mm outer diameter, and an overall width of 31 mm (inner ring width 21.4 mm, outer ring width 15 mm), this bearing offers robust support for radial and moderate axial loads. Its C3 internal clearance provides greater than normal running clearance, accommodating misalignment and thermal expansion. A key feature is its advanced triple-lip sealing system, covered with metal plates on both sides, making it ideally suited for harsh, dirty environments and applications with low rotation speeds. The rounded outer ring facilitates easy installation. Weighing 0.206 kg, the RAE25-NPP-B 3L RICH bearing is an essential component, interchangeable with Dodge parts, ensuring superior efficiency and extended service life.

Key Performance Advantages:

  • Extreme Contamination Protection: Triple-lip seals with metal covers provide superior defense against heavy dust and moisture.
  • Enhanced Durability: Built for demanding operations, ensuring extended service life and reduced maintenance.
  • Optimal Running Clearance: C3 clearance accommodates various operating conditions and potential misalignment.
  • Easy Installation: Rounded outer ring simplifies mounting and integration into housings.
  • Versatile Application: Ideal for machinery in heavily contaminated environments and at low rotational speeds.
  • RICH Quality: Manufactured in China to high standards, guaranteeing consistent performance and reliability.

Data sheet

Inner Diameter
25
Outer Diameter
52
Width
31
Clearance
C3 (Greater than Normal)
