ASNU 30 RICH 30x72x27

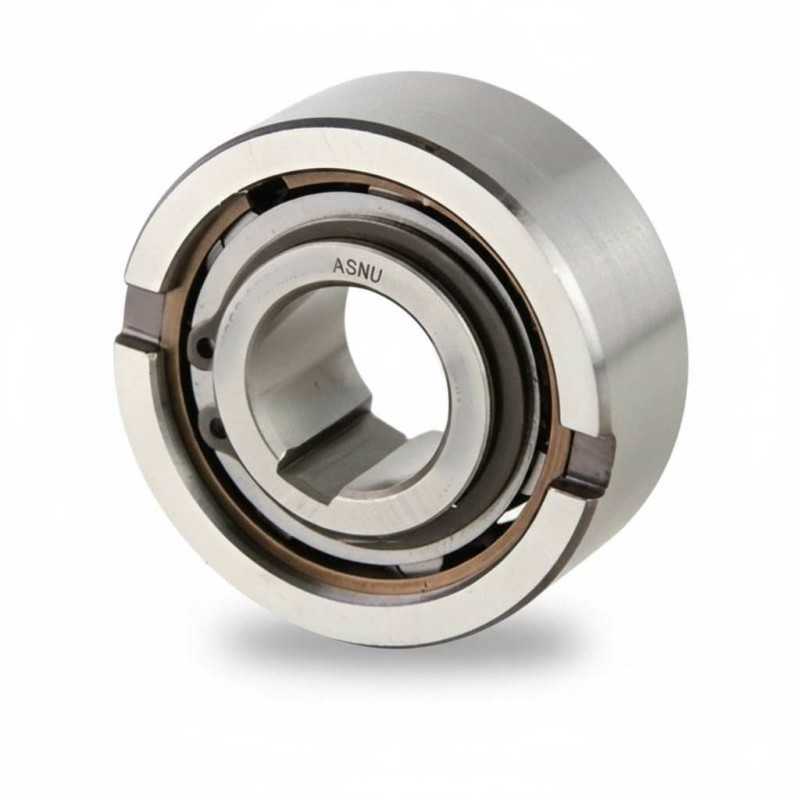

ASNU 30 RICH – Freewheel Clutch – 30 x 72 x 27 mm

Technical Specifications:

• Type: Freewheel clutch (Sprag type)
• Brand: RICH
• Model Designation: ASNU 30
• Inner Diameter (d): 30 mm
• Outer Diameter (D): 72 mm
• Width (B): 27 mm
• Dimensions: 30 x 72 x 27 mm
• Weight: 0.529 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Sprag-type freewheel clutch design incorporating non-bearing supported internal components.
• Directional Control: Mechanical configuration designed for overrunning, backstopping, and indexing functions within mechanical systems.
• Internal Geometry: Precision-ground sprags maintained within an assembly for unidirectional torque transmission.
• Dimensional Format: 30 x 72 x 27 mm technical profile corresponding to standardized ASNU series specifications.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
