NTA 2233 RICH 34,92x52,37x1,984
Rating:
(0)
EUR €
- EUR €
- USD $

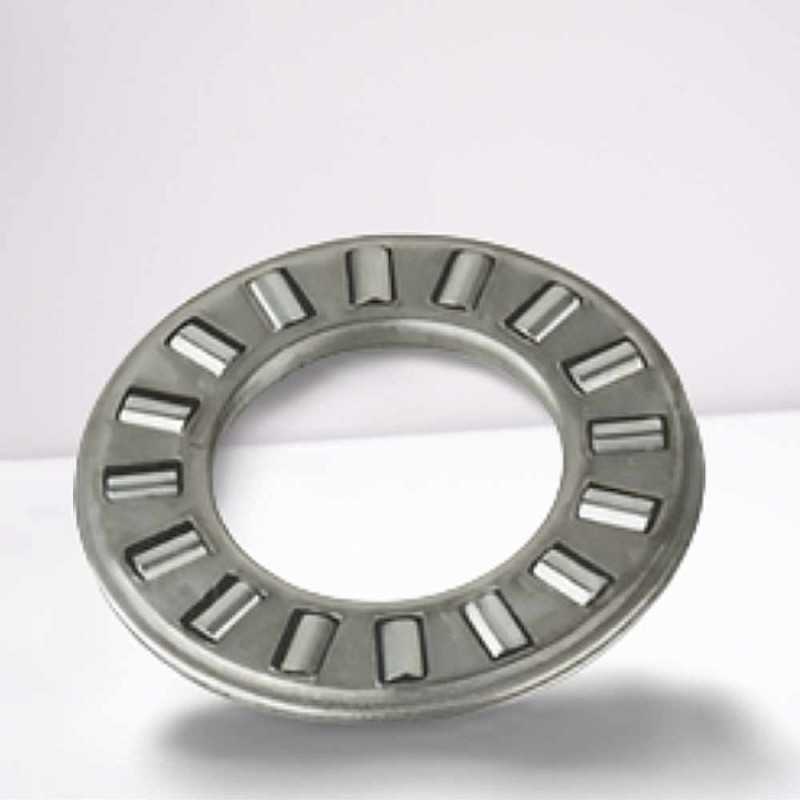

NTA 2233 RICH Axial Needle Roller and Cage Assembly - 34.92 x 52.37 x 1.984 mm
Technical Specifications:
- Brand: RICH
- Type: Axial Needle Roller and Cage Assembly (Thrust)
- Model: NTA 2233
- Dimensions: 34.92 x 52.37 x 1.984 mm
- Inner Diameter (d): 34.92 mm
- Outer Diameter (D): 52.37 mm
- Height (B): 1.984 mm
- Cage Material: Steel
- Weight: 0.016 kg
- Country of Origin: China
The NTA 2233 RICH is a high-precision Axial Needle Roller and Cage Assembly specifically engineered for thrust applications where high load capacity and minimal axial space are critical. Manufactured by RICH, this assembly features metric dimensions of 34.92 x 52.37 x 1.984 mm.
The component consists of a robust steel cage that guides and retains a large number of hardened needle rollers. This design provides the highest possible load-carrying capability for a given axial cross-section. The very small axial height of the assembly makes it ideal for integrating into gearboxes, automotive transmissions, and compact industrial machinery. The NTA 2233 RICH must be used with hardened and ground raceways, typically provided by companion thrust washers (AS series) or suitably hardened adjacent machine components.
Key Performance Advantages:
- High Axial Load Capacity: Large number of needle rollers provides superior thrust load support.
- Minimal Axial Space: Extremely small cross-section for space-constrained designs.
- Steel Cage: Ensures roller retention and smooth, reliable operation under load.
- Easy Installation: Simple, separable design facilitates mounting and disassembly.
Data sheet
Inner Diameter
34,92
Outer Diameter
52,37
Width
1,984
Weight
0,016
Category
Axial Needle Roller and Cage Assembly
