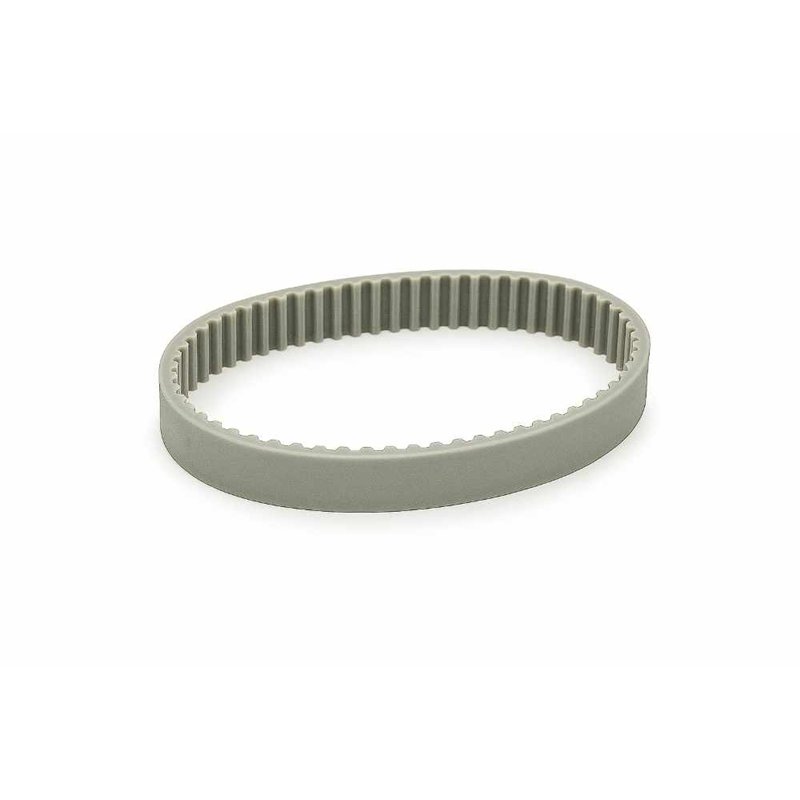

10-T5-815 RICH Polyurethane Timing Belt - T5 Profile - 815 mm Length
Technical Specifications:
- Brand: RICH
- Type: Timing Belt, Polyurethane
- Model: 10-T5-815
- Profile: T5 (Trapezoidal Tooth)
- Pitch Length (Lp): 815 mm
- Pitch (t): 5 mm
- Nominal Width: 10 mm
- Number of Teeth: 163
- Belt Thickness (hs): 2.2 mm
- Tooth Height (ht): 1.2 mm
- Weight: 0.019 kg
- Country of Origin: China
The 10-T5-815 RICH is a precision Polyurethane Timing Belt manufactured by RICH. This belt is engineered for reliable synchronous power transmission and highly accurate linear motion, making it a dependable component for small automation systems, 3D printing equipment, and precision machinery.
This model features the standard T5 profile, characterized by a 5 mm pitch and a nominal width of 10 mm. The belt has a total pitch length of 815 mm and 163 teeth. Constructed from high-quality polyurethane, it offers superior resistance to abrasion, chemicals, and wear, ensuring a longer service life and cleaner operation compared to conventional rubber belts. The specific T5 tooth geometry and light weight of the 10-T5-815 RICH guarantee consistent, high-accuracy indexing and low operational inertia.
Key Performance Advantages:
- Polyurethane Material: Offers superior wear, abrasion, and chemical resistance for extended durability.
- Precise Synchronization: T5 profile ensures highly accurate positioning in linear drive systems.
- Compact Design: 10 mm width is suitable for drives in space-constrained applications.
- High Efficiency: Low mass and precise construction deliver reliable power transmission with minimal inertia.
