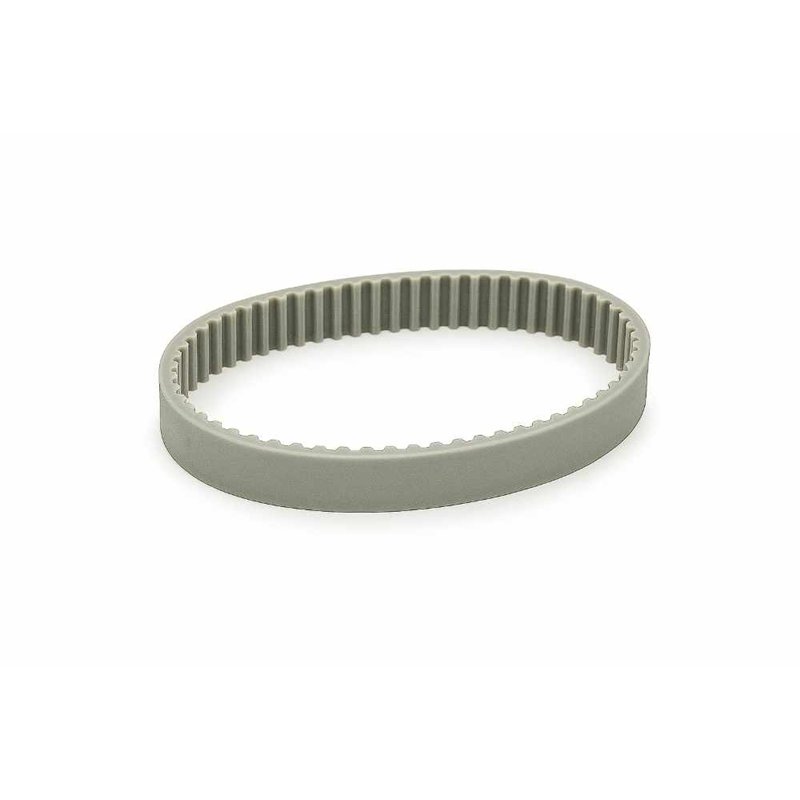

10-T5-900 RICH Polyurethane Timing Belt - T5 Profile - 900 mm Length
Technical Specifications:
- Brand: RICH
- Type: Timing Belt, Polyurethane
- Model: 10-T5-900
- Profile: T5 (Trapezoidal Tooth)
- Pitch Length (Lp): 900 mm
- Pitch (t): 5 mm
- Nominal Width: 10 mm
- Number of Teeth: 180
- Belt Thickness (hs): 2.2 mm
- Tooth Height (ht): 1.2 mm
- Weight: 0.022 kg
- Country of Origin: China
The 10-T5-900 RICH is a high-precision Polyurethane Timing Belt manufactured by RICH. This durable belt is engineered for reliable synchronous power transmission and highly accurate linear motion over a longer span, making it suitable for larger automation systems, plotting devices, and precision material handling equipment.
This model features the standard T5 profile, characterized by a 5 mm pitch, and a nominal width of 10 mm. The belt has a total pitch length of 900 mm and 180 teeth. Constructed from high-quality polyurethane, it provides superior resistance to abrasion, chemicals, and wear, ensuring a longer service life and reliable, clean operation compared to conventional rubber belts. The specific T5 tooth geometry and light weight of the 10-T5-900 RICH guarantee consistent, high-accuracy indexing and high dynamic performance across its length.
Key Performance Advantages:
- Polyurethane Material: Offers superior wear, abrasion, and chemical resistance for extended durability.
- Precise Synchronization: T5 profile ensures highly accurate positioning in demanding linear drive systems.
- Length & Width: 900 mm pitch length and 10 mm width for longer-span, precise drives.
- High Dynamic Performance: Low mass and precise construction deliver reliable power transmission with minimal inertia.
