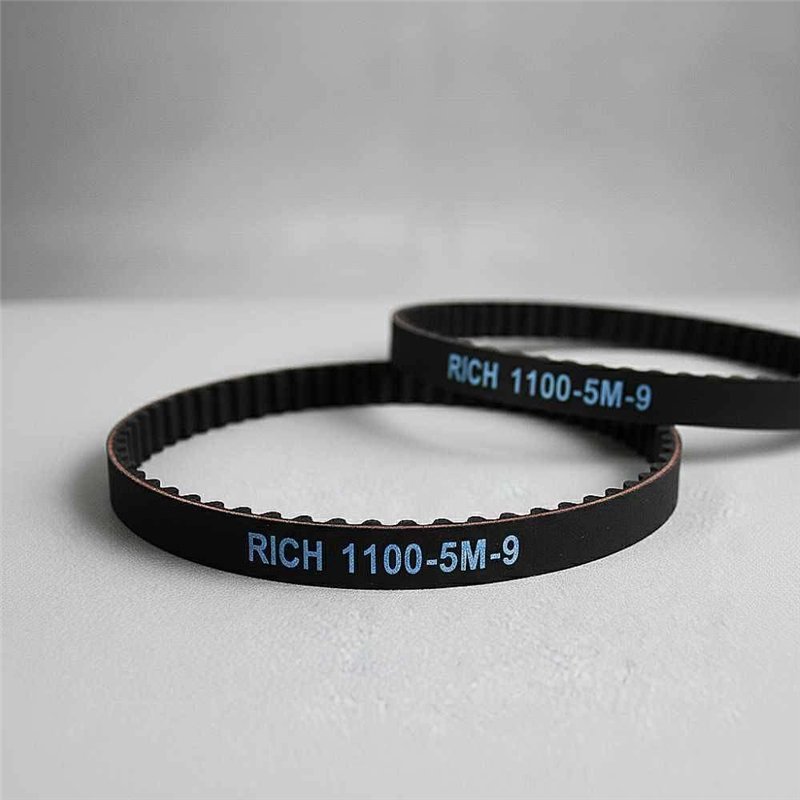

1100-5M-9 RICH 5M Profile Timing Belt - L=1100 mm, W=9 mm
Technical Specifications:
- Brand: RICH
- Type: Timing Belt
- Model: 1100-5M-9
- Profile: 5M (5 mm pitch)
- Pitch (t): 5 mm
- Pitch Length (Ld=Lp=Lw): 1100 mm
- Number of Teeth: 220
- Width (W): 9 mm (Inferred from Model)
- Belt Thickness (hs): 3.6 mm
- Tooth Height (ht): 2.1 mm
- Weight: 0.043 kg
- Country of Origin: China
The 1100-5M-9 RICH is a high-quality 5M Profile Timing Belt produced by RICH, designed for reliable, synchronous operation in high-speed, compact drive systems. This belt has a precise pitch length of 1100 mm, a compact 5 mm pitch, and features 220 teeth. The 9 mm width and 5M profile are perfectly suited for systems that require high performance and low noise in a small footprint.
The curvilinear 5M tooth design offers superior load distribution and reduced root stress compared to traditional trapezoidal profiles, allowing for higher power density and minimizing the risk of tooth jump. Constructed with durable materials and robust tensile cords, the 1100-5M-9 RICH delivers excellent dimensional stability and a long, maintenance-free service life. It is an ideal component for automated equipment, business machines, and small industrial drives.
Key Performance Advantages:
- High Torque 5M Profile: Provides excellent power transmission capabilities for compact drives.
- Long Pitch Length (1100 mm): Suitable for drives with greater center distances.
- Accurate Indexing: Synchronous drive ensures precise positioning and speed control.
- Durable Construction: Built for low stretch, high efficiency, and extended service life.
