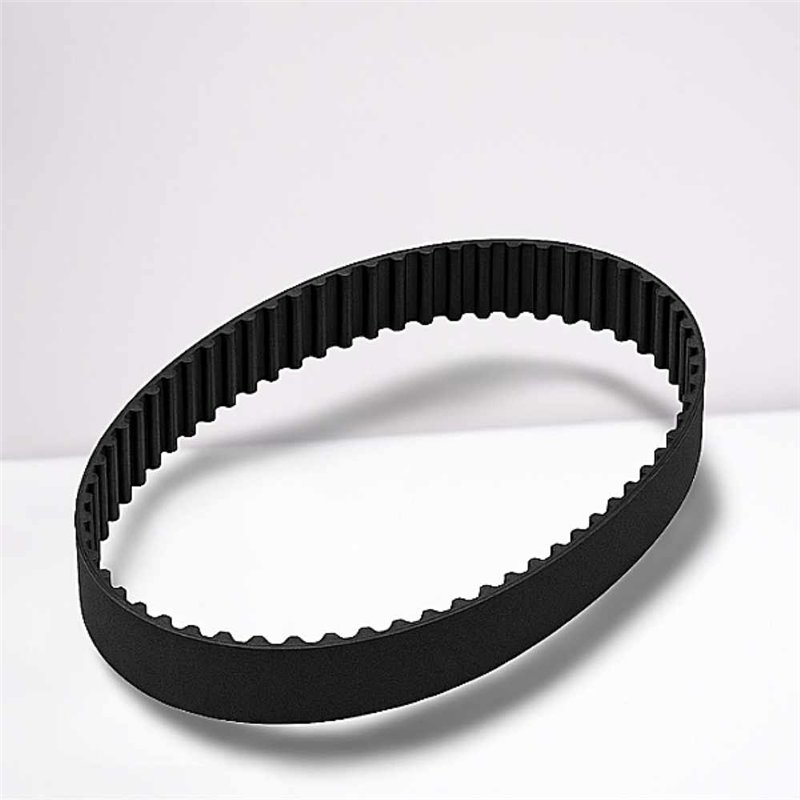

1120-8M-10 RICH Timing Belt - 8M Profile - 1120 mm Length

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt
  • Model: 1120-8M-10
  • Pitch Length (Lp): 1120 mm
  • Profile: 8M
  • Pitch (t): 8 mm
  • Nominal Width: 10 mm
  • Number of Teeth: 140
  • Belt Thickness (hs): 5.6 mm
  • Tooth Height (ht): 3.4 mm
  • Weight: 0.059 kg
  • Country of Origin: China

The 1120-8M-10 RICH is a precision Timing Belt manufactured by RICH. This belt features a pitch length of 1120 mm and the robust 8M profile, making it ideal for synchronous drives requiring high torque and accurate power transmission across industrial applications.

The 8M profile has an 8 mm pitch, and with a nominal width of 10 mm, this belt offers reliable load carrying capacity. Containing 140 teeth, it ensures accurate positioning and consistent operation. The durable construction provides excellent resistance to elongation and wear, resulting in a long, maintenance-free service life. The 1120-8M-10 RICH is well-suited for medium-duty machinery, conveying systems, and automation equipment where precise timing and stability are essential.

Key Performance Advantages:

  • High Torque Capability: The 8M profile is designed for medium-duty synchronous power transmission.
  • Precise Timing: Non-slip operation ensures highly accurate positioning and synchronization.
  • Durable Construction: Robust build provides long service life and high resistance to elongation.
  • Low Maintenance: Offers clean, consistent performance without the need for lubrication.
