1120-S8M-10 RICH | Timing Belt
Rating:
(0)
EUR €
- EUR €
- USD $

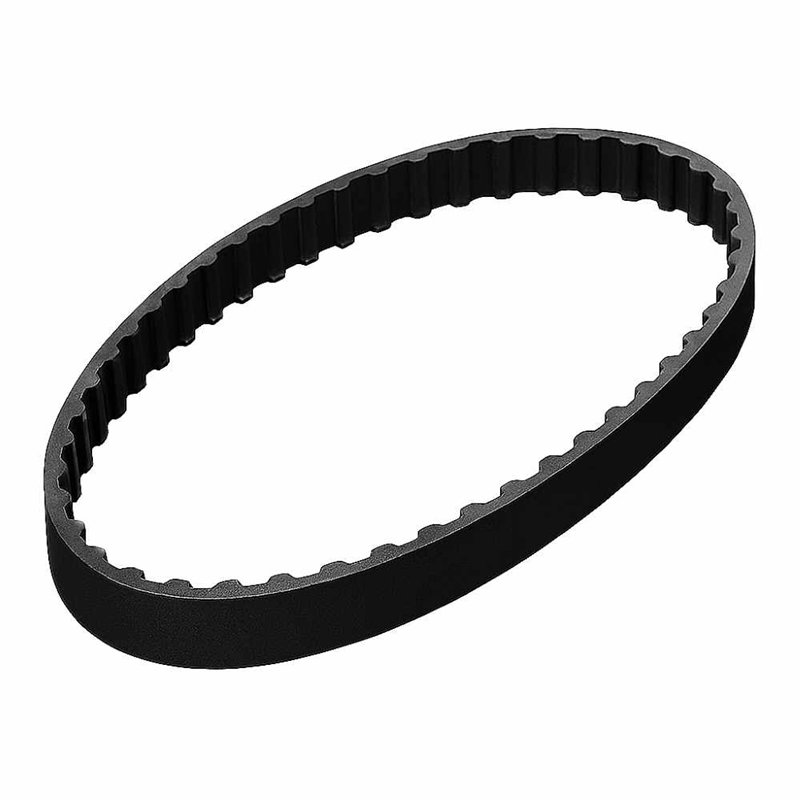

1120-S8M-10 RICH Timing Belt - S8M Profile - 1120 mm Length
Technical Specifications:
- Brand: RICH
- Type: Timing Belt
- Model: 1120-S8M-10
- Pitch Length (Lp): 1120 mm
- Profile: S8M
- Profile: S8M (Curvilinear Tooth – rounded tooth shape for smooth, low-noise transmission)
- Pitch (t): 8 mm
- Nominal Width: 10 mm
- Number of Teeth: 140
- Weight: 0.059 kg
- Country of Origin: China
The 1120-S8M-10 RICH is a high-performance Timing Belt manufactured by RICH. This belt is engineered with the advanced S8M profile, featuring a curvilinear tooth form and an 8 mm pitch, which provides superior load capacity and reduced shear stress compared to traditional trapezoidal profiles. It has a pitch length of 1120 mm.
With 140 teeth and a nominal width of 10 mm, this belt is ideal for demanding synchronous drives that require high torque transmission and accurate positioning within a narrow design space. The S8M profile ensures smooth, quiet operation, and exceptional resistance to tooth jump, even under heavy, intermittent loads. The durable construction is designed for minimal maintenance and a long service life, making the 1120-S8M-10 RICH a reliable choice for machine tools, textile machinery, and other industrial automation equipment.
Key Performance Advantages:
- High Torque Transmission: Curvilinear S8M tooth profile provides high capacity and efficiency.
- Accurate Positioning: Non-slip design ensures precise synchronization.
- Reduced Stress: Superior tooth engagement minimizes shear and wear.
- Compact Width (10 mm): Optimally sized for high-power, space-saving applications.
