1120-S8M-30 RICH | Timing Belt 1120-S8M-30 RICH
search
  • 1120-S8M-30 RICH | Timing Belt 1120-S8M-30 RICH

1120-S8M-30 RICH | Timing Belt

RICH
1120-S8M-30
€16.95
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

Rating:
(0)

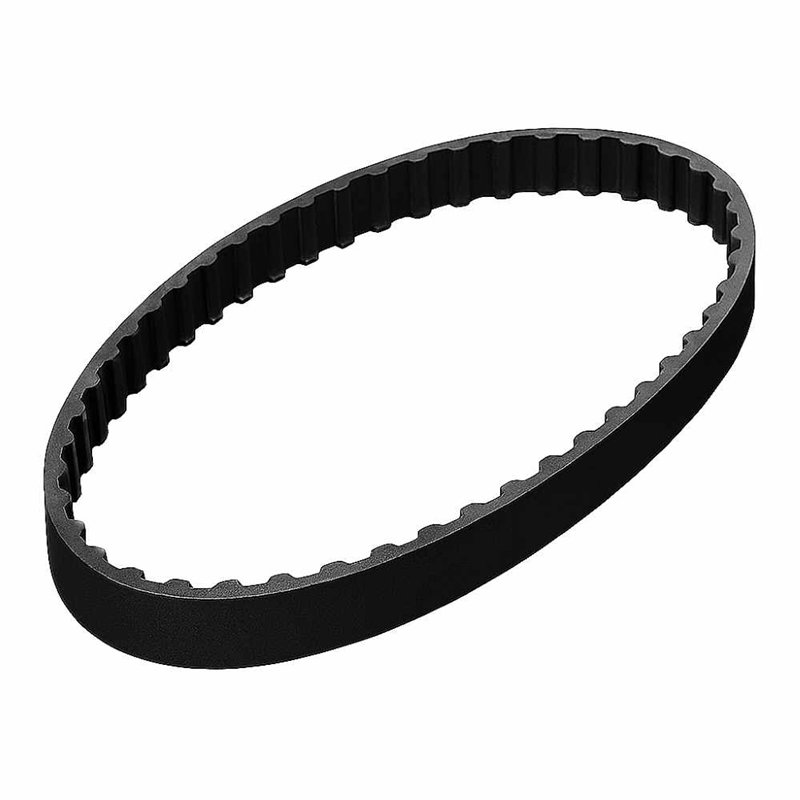

1120-S8M-30 RICH Timing Belt - S8M Profile - 1120 mm Length

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt
  • Model: 1120-S8M-30
  • Pitch Length (Lp): 1120 mm
  • Profile: S8M (Curvilinear Tooth)
  • Pitch (t): 8 mm
  • Nominal Width: 30 mm
  • Number of Teeth: 140
  • Weight: 0.178 kg
  • Country of Origin: China

The 1120-S8M-30 RICH is an ultra-heavy-duty Timing Belt manufactured by RICH, specifically engineered for industrial applications that require maximum power and precise synchronization. This belt incorporates the high-capacity S8M profile, utilizing an 8 mm curvilinear pitch for superior torque transfer, high efficiency, and reliable positioning.

This model is built with a pitch length of 1120 mm and features a substantial nominal width of 30 mm. This 30 mm width is designed to handle the highest possible loads for this profile, ensuring exceptional power distribution and robust resistance to dynamic stress. With 140 teeth, the belt provides non-slip, accurate motion control, making the 1120-S8M-30 RICH an ideal component for heavy machinery, powerful pumps, and demanding automation systems where reliability under extreme conditions is essential.

Key Performance Advantages:

  • Maximum Load Capacity (30 mm): Extreme width handles the highest torque and power demands.
  • Accurate Synchronicity: S8M profile ensures precise, non-slip motion control.
  • Heavy-Duty Design: Built for minimal stretch and extended service life under severe loads.
  • Standard Pitch: 8 mm pitch for compatibility with standard S8M pulleys.
