1135-5M-15 RICH | Timing Belt

RICH
1135-5M-15
€13.10
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

Rating:
(0)

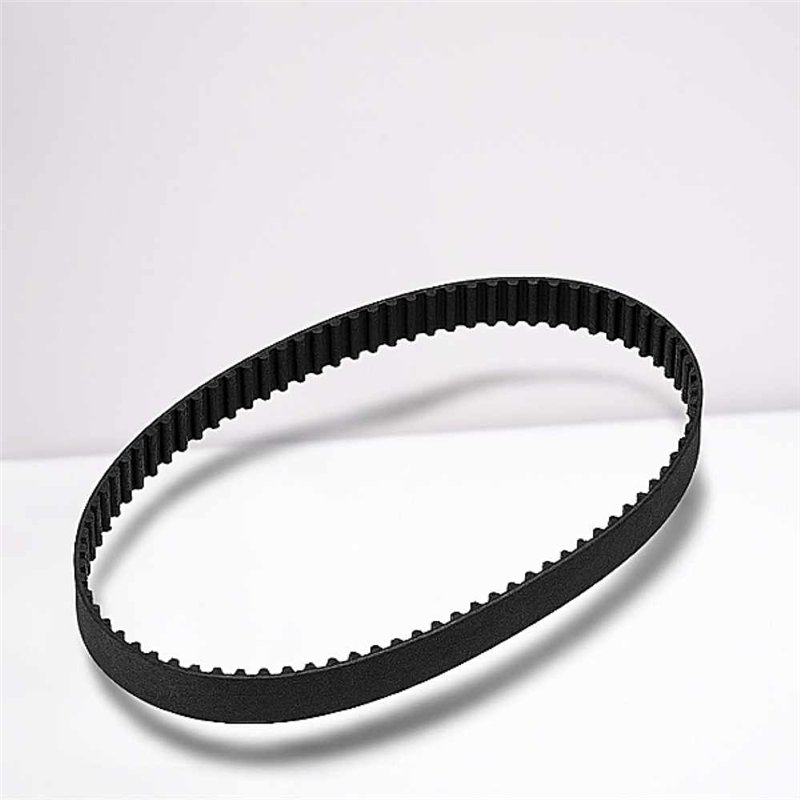

1135-5M-15 RICH Timing Belt - 5M HTD Profile - 1135 mm Pitch Length - 15 mm Width

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt
  • Model: 1135-5M-15
  • Pitch Profile: 5M (HTD - High Torque Drive)
  • Pitch (t): 5 mm
  • Pitch Length (Lp): 1135 mm
  • Number of Teeth: 227
  • Width: 15 mm
  • Belt Thickness (hs): 3.6 mm
  • Tooth Height (ht): 2.1 mm
  • Weight: 0.068 kg
  • Country of Origin: China

The 1135-5M-15 RICH is a precision Timing Belt manufactured by RICH, engineered for efficient, synchronous power transmission in compact and high-speed applications. It utilizes the 5M High Torque Drive (HTD) profile, which features a rounded tooth geometry for optimized load distribution, reduced noise, and increased tooth jump resistance.

This endless loop belt has a long pitch length of 1135 mm and a 15 mm width. With 227 teeth and a fine 5 mm pitch, the belt ensures precise indexing and zero-slip operation vital for accuracy. The belt's slim profile (3.6 mm thickness) and compact 5 mm pitch make the 1135-5M-15 RICH perfectly suited for machinery where space is limited but high efficiency is required, such as robotics, automated office equipment, and small industrial drives.

Key Performance Advantages:

  • Synchronous and Efficient: 5M HTD profile ensures reliable, zero-slip power and motion control.
  • Compact Design: Fine 5 mm pitch is ideal for high-speed, compact drive systems.
  • High Load Transfer: Curvilinear tooth shape provides excellent shear strength and torque handling.
  • Precision Sizing: Accurate 1135 mm length and 15 mm width for reliable fitment.
