Belt 1040 8M 85 HTD

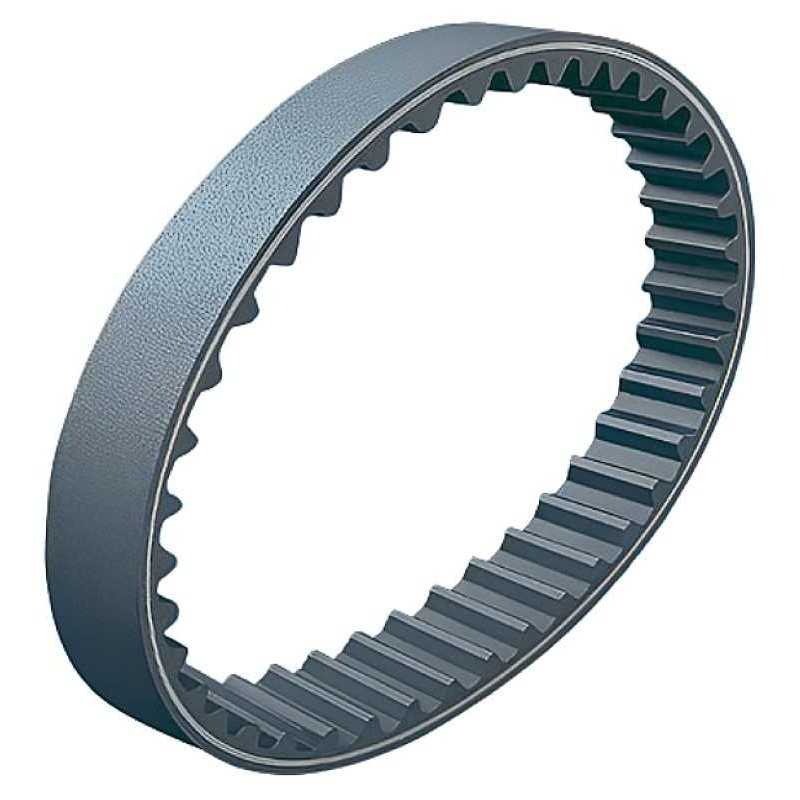

1040-8M-85 RICH – Timing Belt – 1040 mm Pitch Length

Technical Specifications:

• Type: Timing belt
• Brand: RICH
• Model Designation: 1040-8M-85 HTD
• Pitch Length (Lp/Lw/Ld): 1040 mm
• Belt Width: 85 mm
• Pitch (t): 8 mm
• Number of Teeth: 130
• Profile: 8M
• Belt Thickness (hs): 5.6 mm
• Tooth Height (ht): 3.4 mm
• Material: Polychloroprene (Hibrex)
• Tensile Cord: Fiberglass
• Product Feature:  HTD configuration
• Weight: 0.508 kg
• Country of Origin: China

Performance Characteristics:

• Structural Design: Manufactured with a high-performance polychloroprene (Hibrex) compound, providing excellent resistance to environmental factors and fatigue.
• Tensile Strength: Features integrated fiberglass tensile cords that ensure high dimensional stability and prevent belt stretching during operation.
• Profile Geometry: Utilizes the 8M HTD (High Torque Drive) curvilinear tooth profile, optimized for efficient power transmission and uniform load distribution across the teeth.
• Operational Efficiency: Specifically designed for synchronous drive applications requiring precision timing and high torque transmission under diverse mechanical conditions.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
