KRV30-PP RICH 12x30x14

Fine-tune precision with the KRV30.PP RICH cam follower. 12x30x14mm, M12x1.5 stud, China.

RICH
KRV30PP
€4.48
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

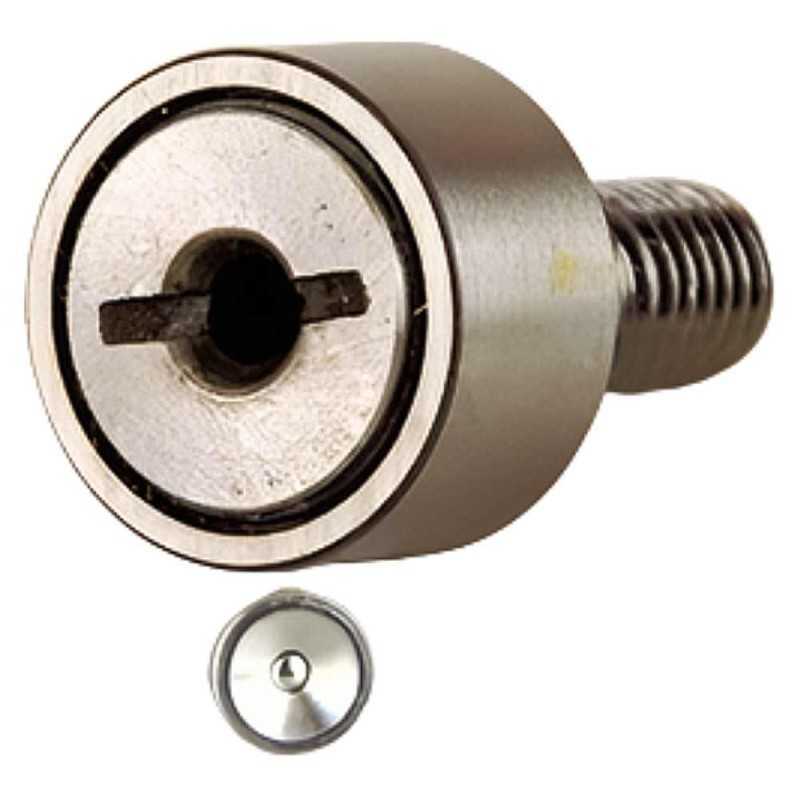

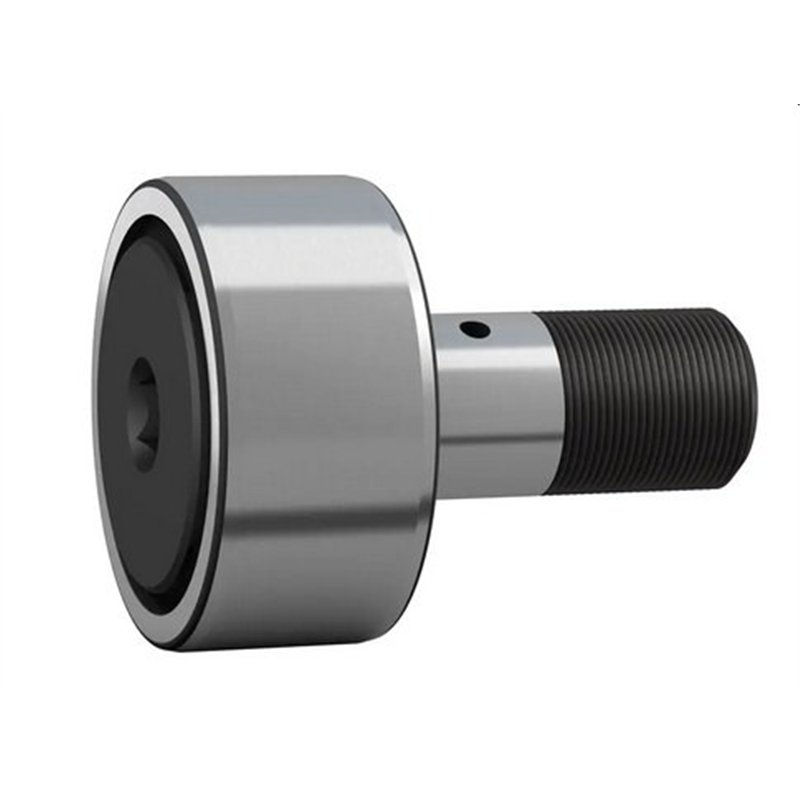

KRV30.PP RICH Cam Follower - Concentric Stud - 12 x 30 x 14 mm Sealed

Technical Specifications:

  • Bearing Type: Cam Follower, Concentric Stud
  • Model Designation: KRV30.PP
  • Brand: RICH
  • Outer Diameter (D): 30 mm
  • Width over rollers/raceways (B): 14 mm
  • Stud Diameter (d1): 12 mm
  • Overall Length (B1): 40 mm
  • Thread Size: M12x1.5
  • Outer Ring: Rounded (Crowned)
  • Sealing: Double-sided rubber, contact (PP)
  • Cage: None (Full Complement)
  • Weight: 0.089 kg
  • Country of Manufacture: China

The KRV30.PP RICH cam follower with a concentric stud, meticulously manufactured by RICH in China, is engineered for precise and reliable motion in various industrial applications. This robust cam follower features a 12 mm stud diameter with an M12x1.5 fine thread, a 30 mm outer diameter, and a 14 mm width over the rollers/raceways, with an overall bearing length of 40 mm. Its full complement design (no cage) maximizes the load-carrying capacity, while the rounded (crowned) outer ring minimizes edge stresses and ensures smooth running even with slight misalignment. Equipped with double-sided contact rubber seals (PP) to protect against contaminants, this RICH cam follower delivers consistent and dependable performance in automation systems, conveying equipment, and indexing mechanisms. Weighing 0.089 kg, it is an ideal solution for applications requiring high load support and stable operation.

Key Performance Advantages:

  • Concentric Stud Design: Provides stable and precise tracking for applications where fixed alignment is required.
  • High Load Capacity: Full complement design with no cage allows for a greater number of rolling elements, maximizing load-carrying capability.
  • Rounded Outer Ring: Minimizes edge stress and provides smoother operation, especially under slight misalignment.
  • Double-Sided Contact Seals (PP): Offers effective protection against dust, dirt, and moisture, enhancing durability in harsh environments.
  • Robust Construction: Designed for reliable performance in demanding applications with significant loads.
  • RICH Quality: Produced in China to high manufacturing standards, guaranteeing dependable performance.
